Oceanus mini rov system

Featuring an ROV capable of fitting in a 12″ diameter pipe, and an ROV topside with high-end features, all found in an affordable package.

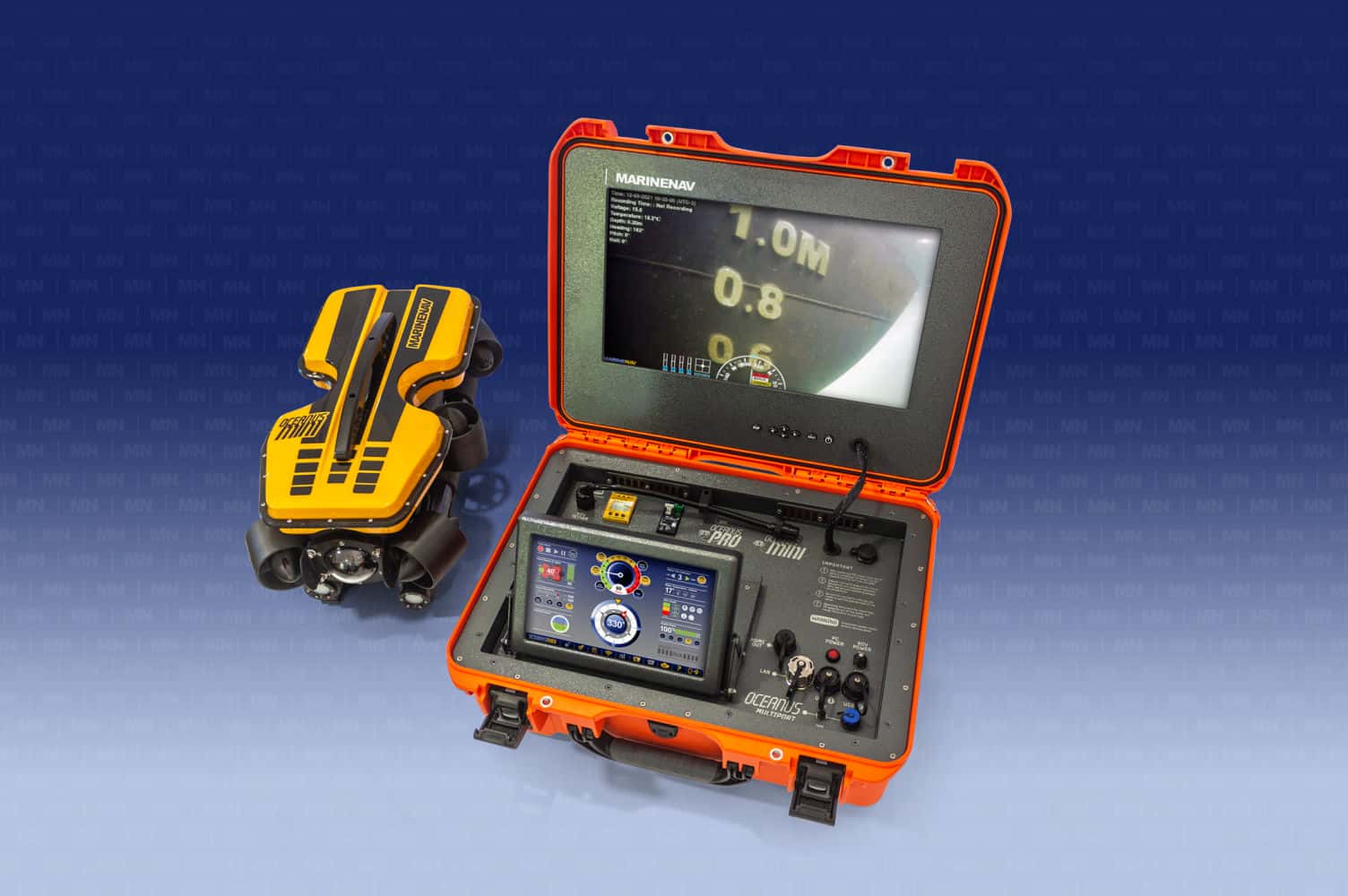

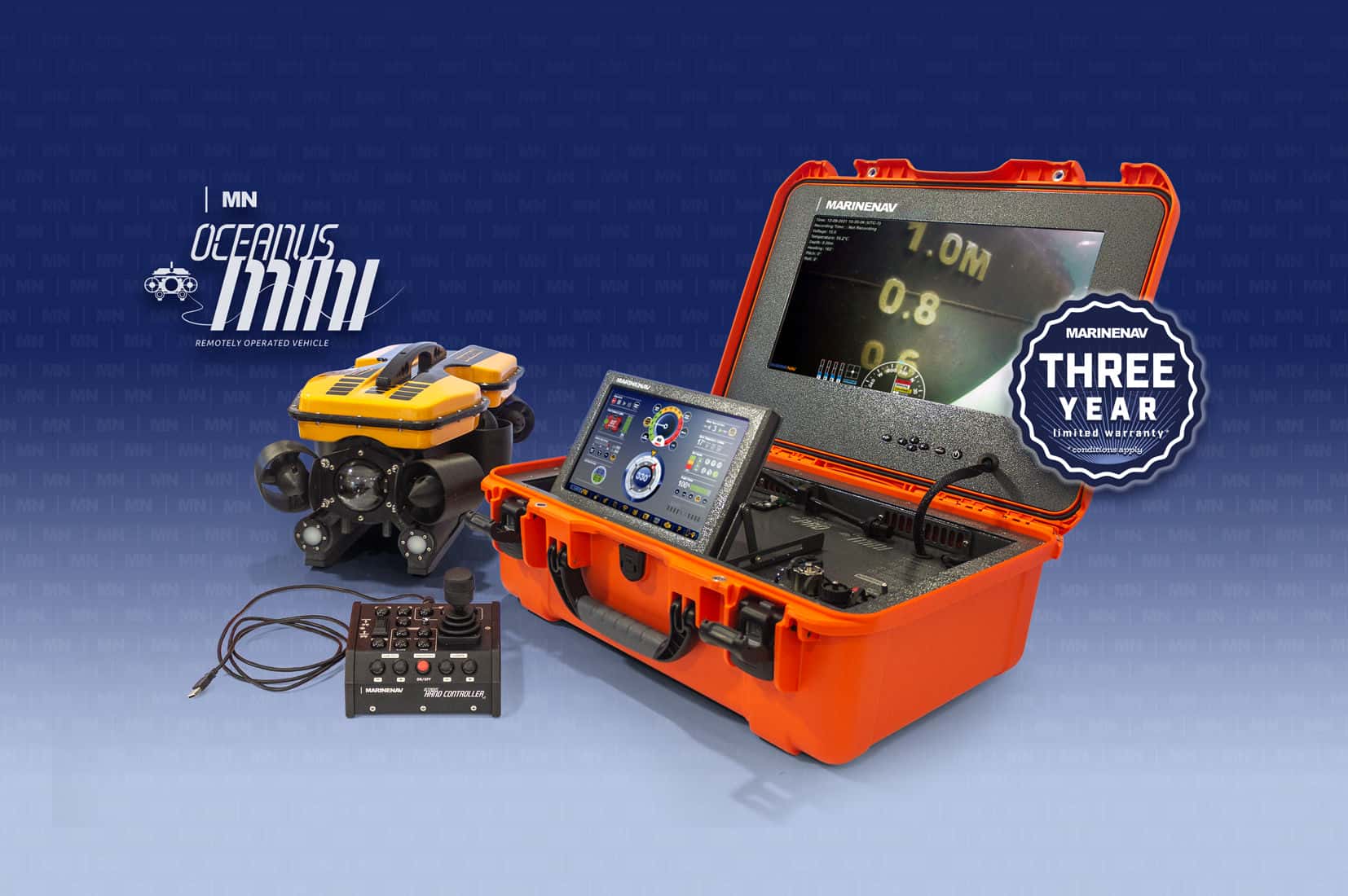

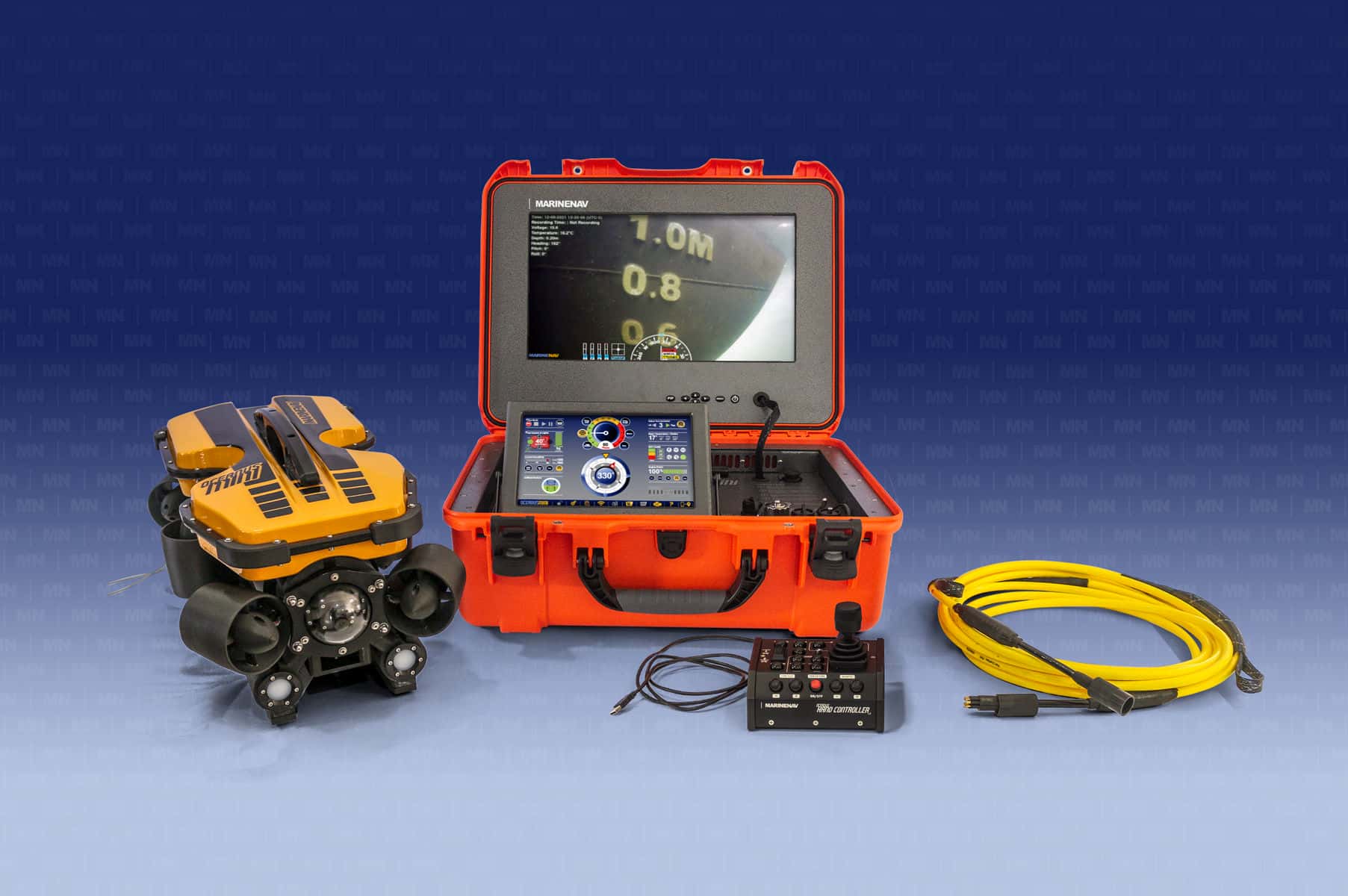

The Oceanus Mini ROV, topside control unit and Oceanus joystick hand-held controller (v3.0).

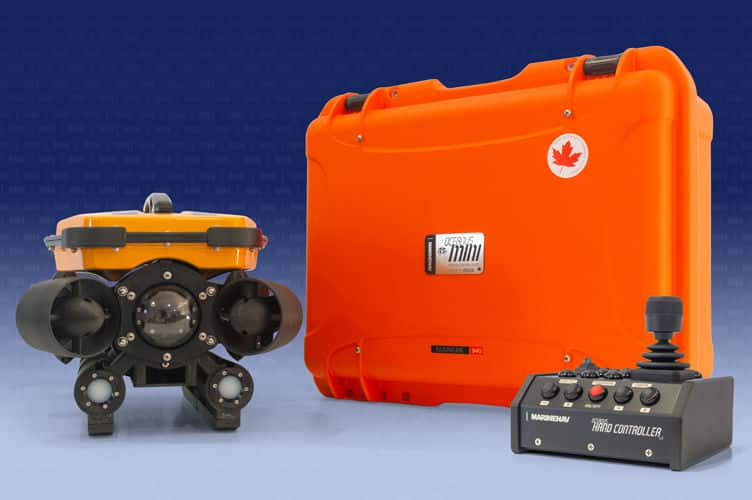

Oceanus Mini ROV system (tether sold separately).

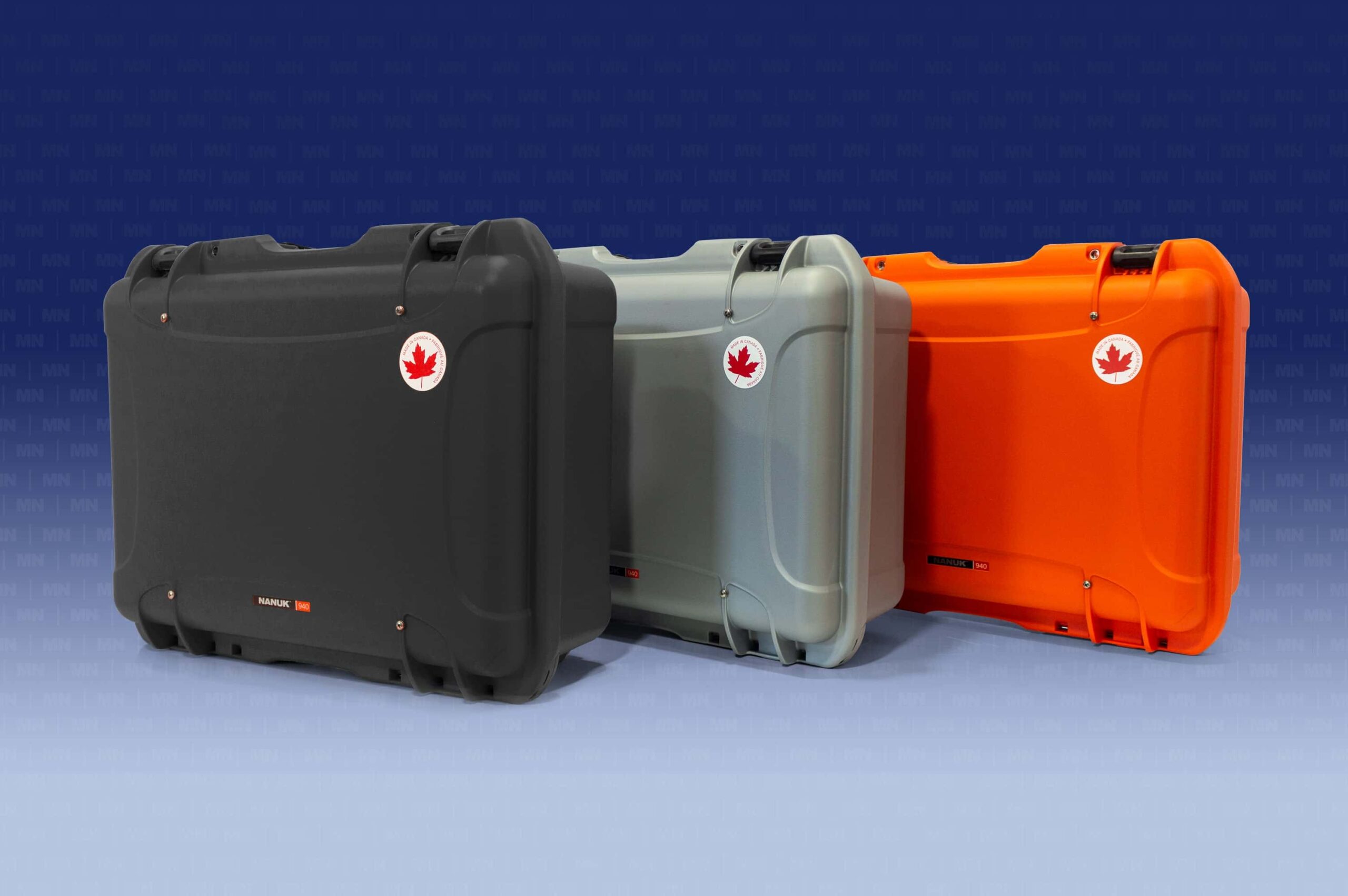

IP-rated rugged topside control cases available in a variety of colours (based on available inventory).

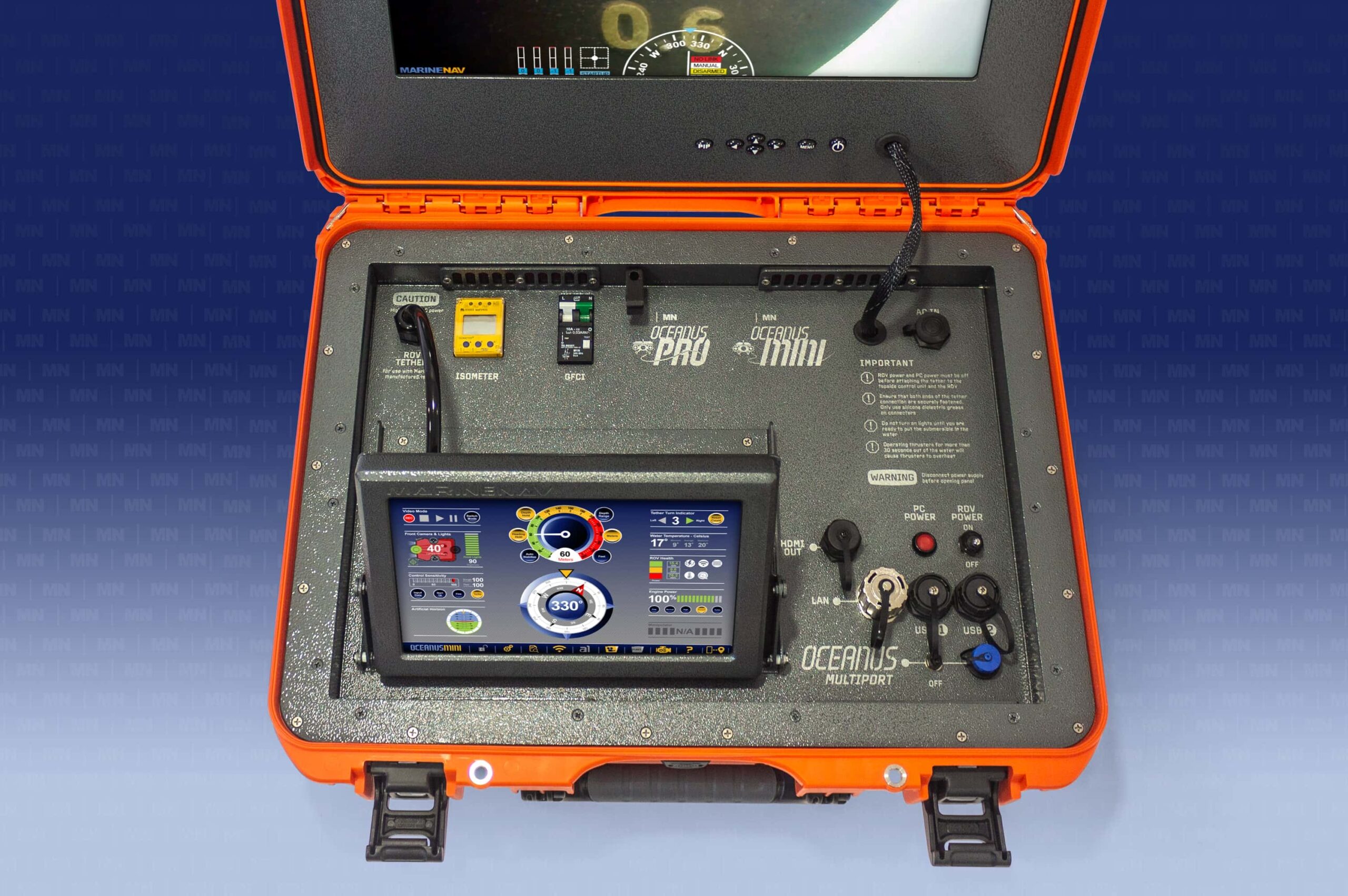

The topside control case is the command centre of the ROV system.

The topside control system is compatible with the Oceanus Pro Classic ROV. Easily swap out your ROV or expand your ROV fleet by adding a Pro Classic ROV.

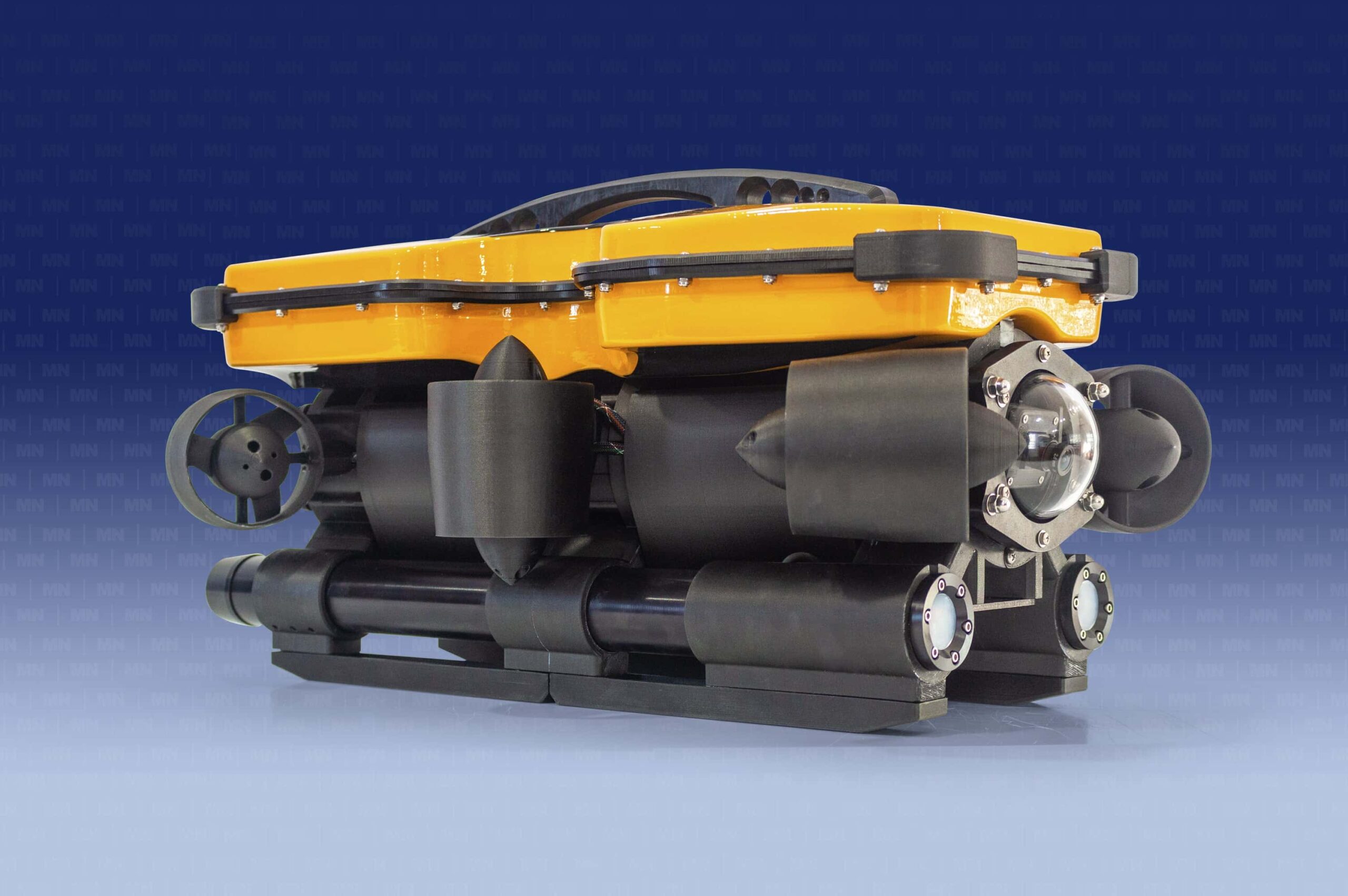

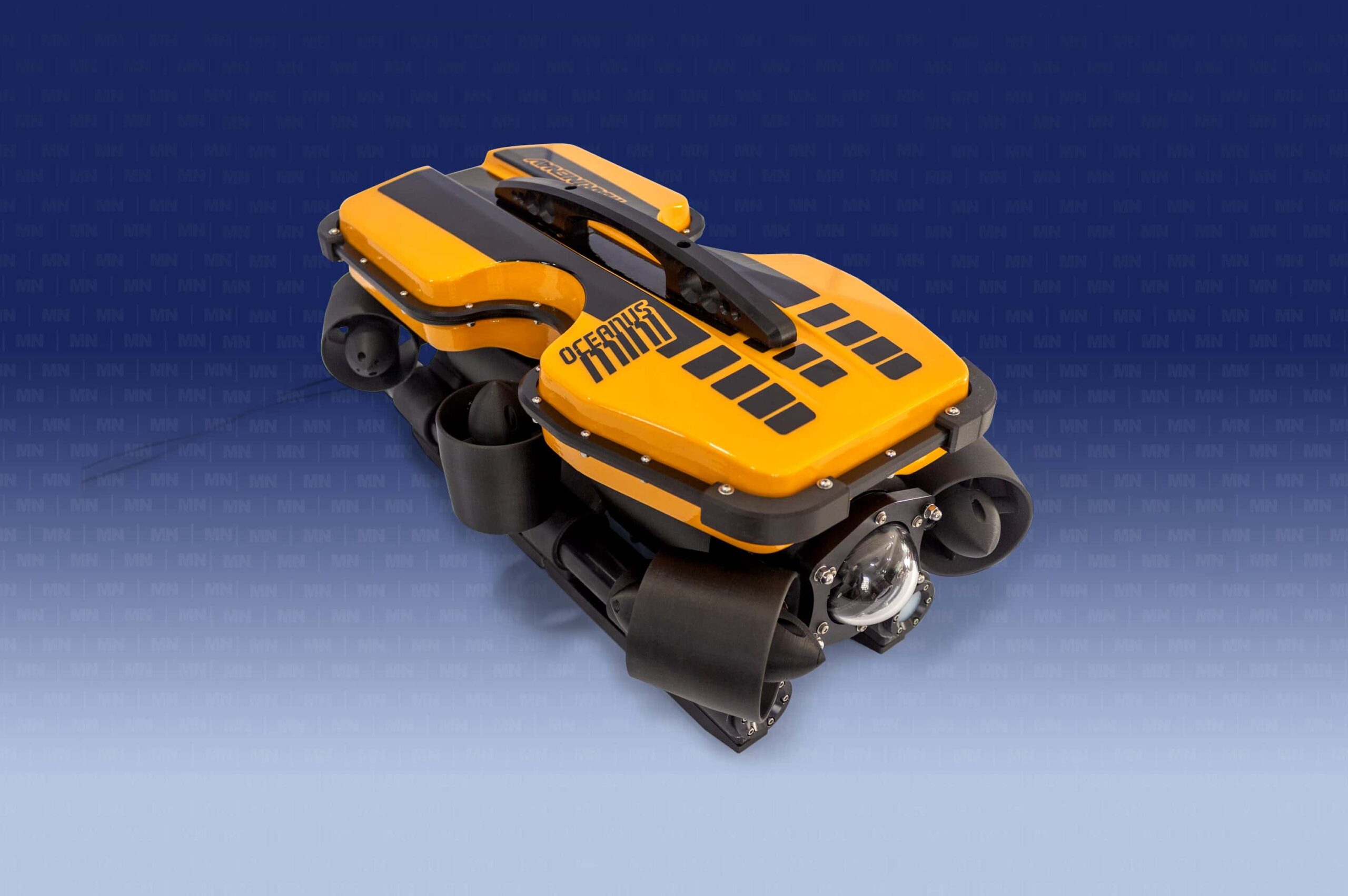

Six vectorized thruster design provides power and stability.

The ROV measures 521mm in length and weighs 10.8 kg.

Easily accessed AUX connection ports and ROV ballast weight tray.

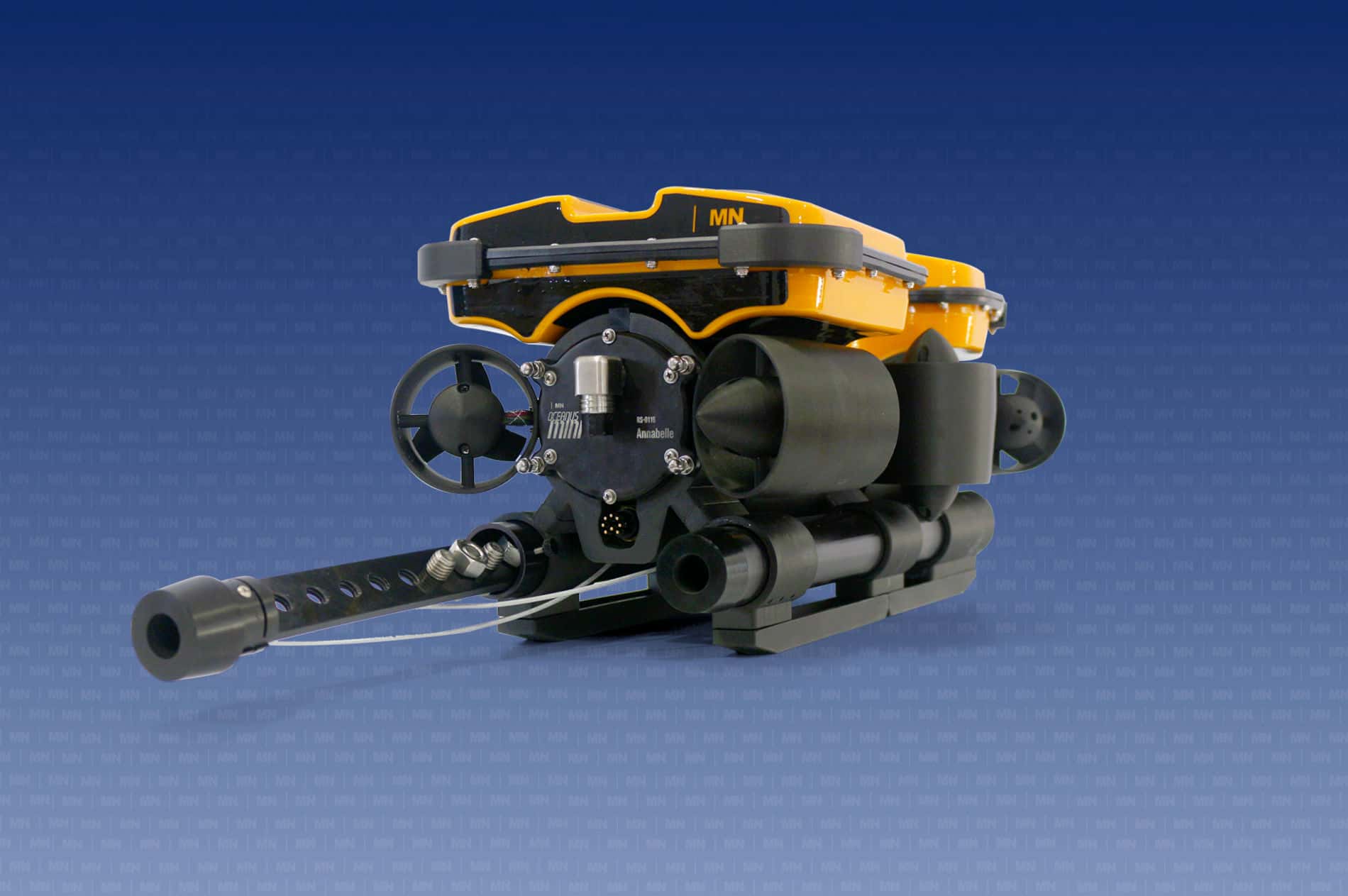

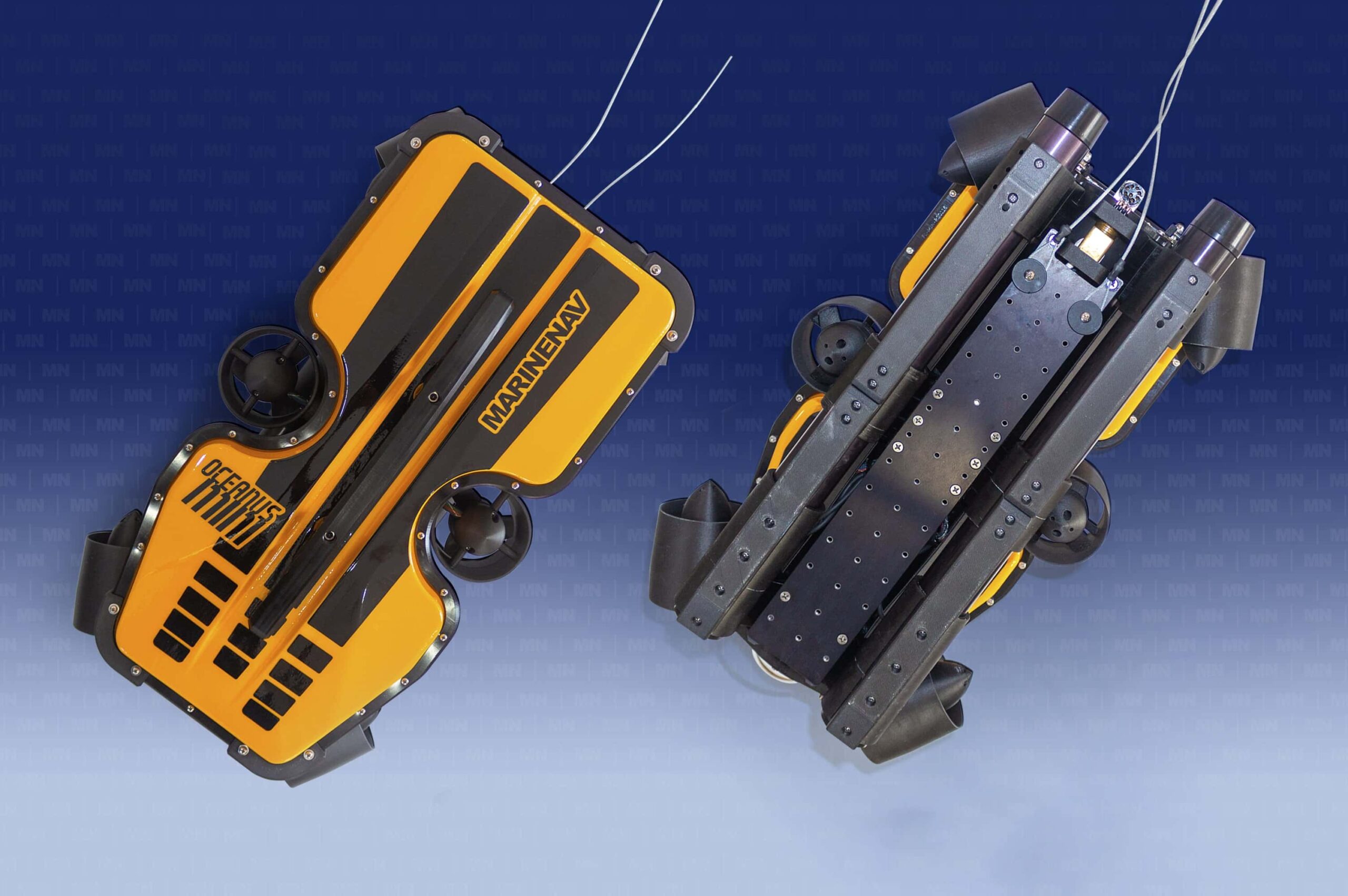

Constructed of marine-grade materials. The ROV undercarriage includes a universal mount plate for ROV accessories.

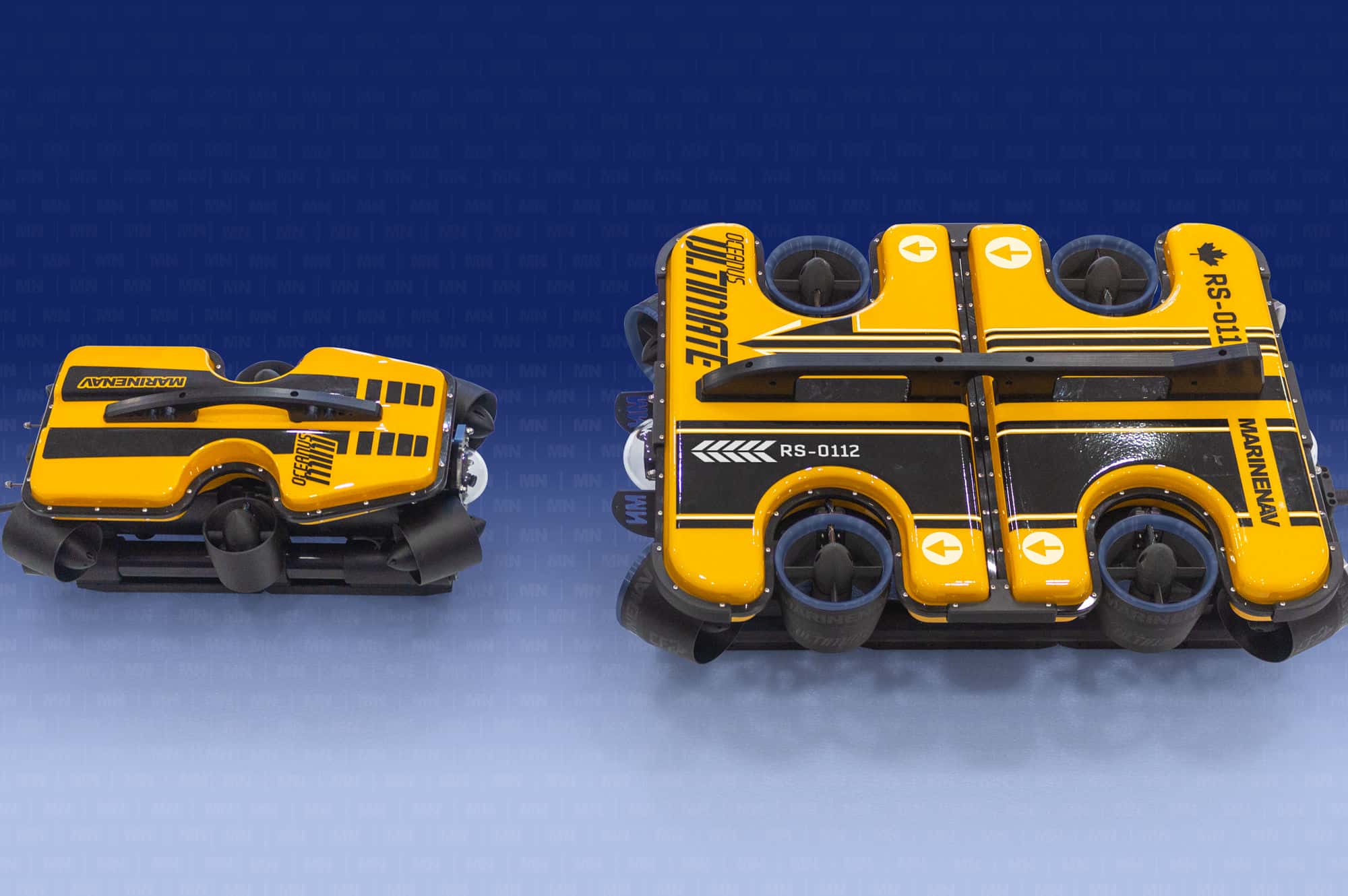

The Oceanus Mini and Ultimate ROV in a side-by-side size comparison.

starting at

Manufactured Retail Sales Price

Falcon UAV Oceanus Mini ROV system includes the following:

Small profile... big performance

A smaller size does not mean this ROV lacks power or versatility. This ROV system, designed, engineered and manufactured on-site to strict ISO standards, undergoes 20-plus hours of tests before delivery. The core construction of marine-grade aluminum and the same robust engineering standards found in our larger ROV vectorized thruster systems ensure this system will stand up to the harshest tests. Designed to be compatible with Falcon UAV Oceanus Pro Classic ROV system, the Oceanus Mini ROV receives power over the ROV tether and can perform dives to 400m. The Oceanus Mini is compatible with many attachments developed for the Oceanus Pro ROV.

Falcon UAV Oceanus Mini ROV system includes these features

Portable, mission-ready ROVs that can be set up and deployed within minutes by a single person.

Fully assembled ROV system components are delivered in portable, waterproof cases easily wheeled or carried by a single individual. Connection of ROV components to easily identifiable connection ports and quick computer boot-up sequence minimizes set-up time for ROV deployment. ROV System includes comprehensive operator manuals that will have you familiarized with and flying your Falcon UAV ROV quickly.

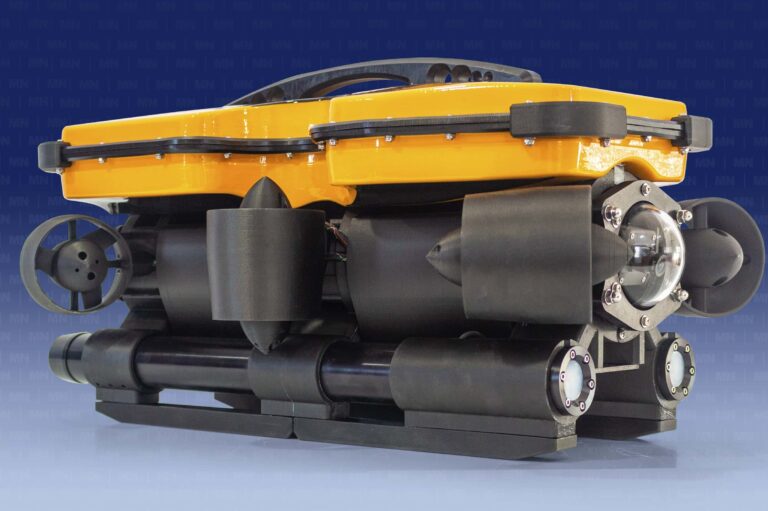

ROV chassis is manufactured from anodized metal. Independently certified.

We incorporate proven marine-grade materials and components in all our ROV systems, including metalwork fabricated on-site from machine-milled marine-grade aluminum, protected by an anodized finish. Rigorous testing of all ROV components ensures our ROV systems withstand extensive use in the harshest conditions. The Falcon UAV Oceanus Mini ROV system is independently certified to a standard depth of 400 meters.

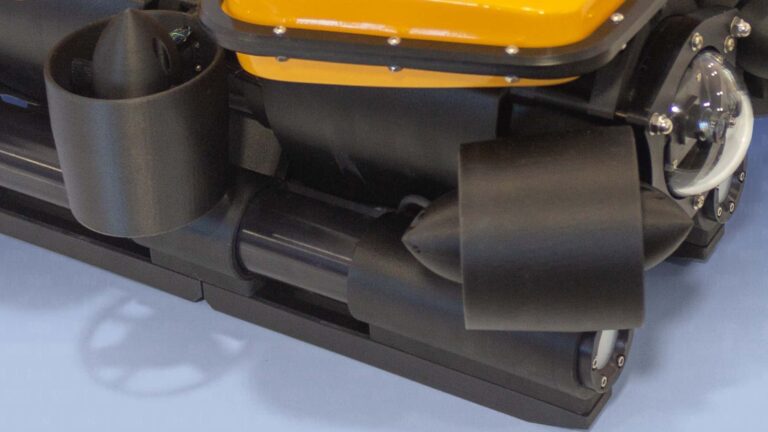

Vectorized carbon fibre thruster design generates power to spare.

Six powerful vectorized thruster engines generate ROV speeds up to 4 knots, Oceanus ROV systems provide top-of-class speed and lift capabilities, and lateral axis ROV movement is standard. 3-D printed carbon fibre thruster assemblies are extremely durable, especially in ice-cold water. Unlike typical plastic thrusters, our thrusters withstand drops, dirt, scrapes, and bumps.

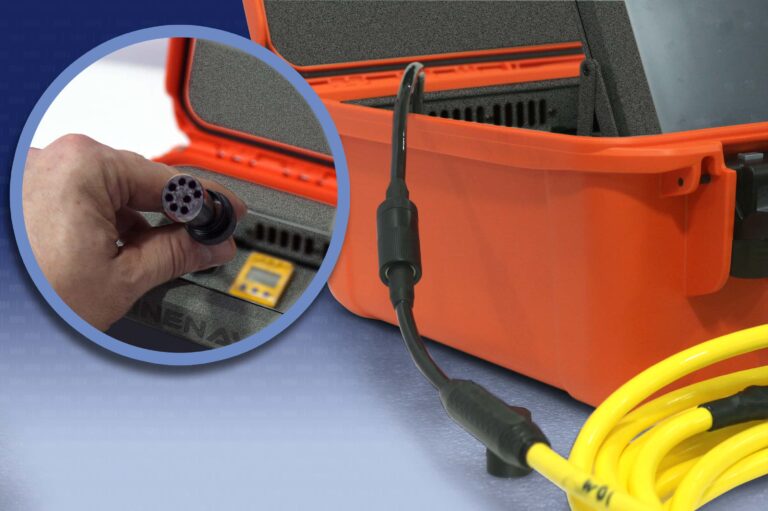

Power over tether design.

Falcon UAV ROV tether provides communications, streaming video and a pair of independent auxiliary conductors for compatible ROV accessory use with no noticeable electrical interruption or video lag tested to tether lengths of 500 meters. Falcon UAV neutrally buoyant ROV tether is made from regionally sourced and fabricated components and is available as measured or custom-cut tether lengths. Pair your ROV tether with a Falcon UAV Tether Deployment system (TDS). Our tether deployment reels can accommodate tether lengths measuring up to 600 meters.

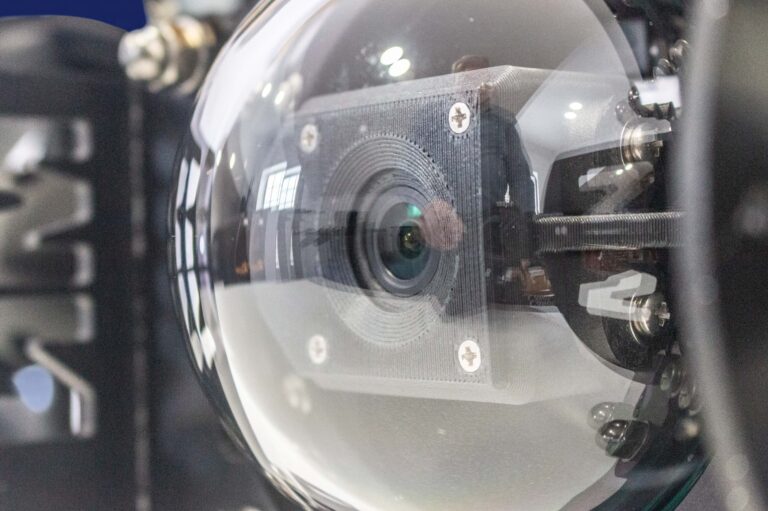

Streaming 1080P HD video feed.+/- 160° tilt camera gimbal.

Protected by side bumpers and a resilient acrylic front-facing dome, Falcon UAV 1080P high-definition camera captures real-time streaming video and stunning still images. A redesigned camera gimbal system enables +/- 160° tilt control and a 120° field of view via the ROV systems onboard front camera system. Streaming video is viewed on the Topside Control Case‘s 18.5" TFT active matrix widescreen video display, while the HDMI out port allows for connection to another HD display.

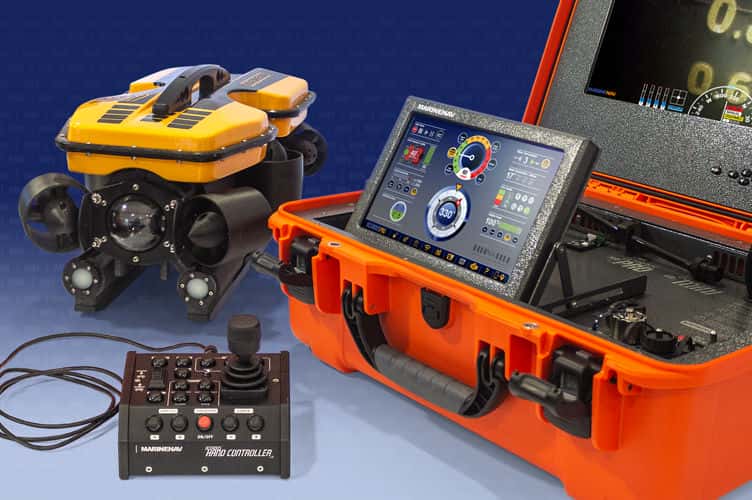

Responsive ROV handheld controllers. Rugged topside ROV control hub. Touch-sensitive software.

Flying an Oceanus ROV is easy, even with no previous experience, when using our ROV hand-held controllers and integrated Flight Control System (FCS) software. A hand-held Hall-effect joystick controller provides precise ROV piloting and access to many ROV functions, while intuitive touch-sensitive proprietary FCS software viewed on a dedicated 10.1" touch-sensitive topside display enables pilots to access crucial ROV data modules, allowing changes to ROVs on the fly.

Increased ROV functionality with Falcon UAV designed, and third-party ROV attachments.

Falcon UAV produces a range of ROV accessories designed to perform task-specific functions crucial to the success of your dive mission. Our in-house design team will work with you to develop a bespoke attachment for your required need. Falcon UAV ROV systems are compatible with many popular third-party brand ROV attachments. Contact us for information regarding third-party ROV accessories or any proprietary Falcon UAV ROV attachments.

International sales and support are provided by an extensive network of authorized distributors.

Falcon UAV products are available through an authorized distribution network across five continents. A growing number of international sales and support staff ensures help is available when you need it, wherever you may be.

Additional features include

STANDARD DEPTH RATING OF OF 400m (1312 ft).

The Oceanus Mini ROV is independently certified to a depth of 400m (1312ft). Repeated dives to depths beyond 300m require an optional system upgrade.≠

MAXIMUM SPEED OF 4 KNOTS

Maximum speed test performed with the ROV fitted with an optional performance float block. (ROV ballast weights and accessories were not included when the ROV speed test was conducted).

ROV DRY WEIGHT OF 10.8 kg (23.8 Lb)

Compact design and reduced footprint equate to a lightweight ROV. ROV ballast weights are not included as part of the ROV dry weight.

LATERAL AXIS ROV MOVEMENT

An unparalleled control system and superior thruster performance deliver fully vectorized ROV maneuverability, control ROV depth, horizontal and lateral movement. ROV flight controls include auto-depth, heading hold and ROV stabilize modes.

1080P HD VIDEO

A high-definition camera with +/- 160° tilt functionality provides stunning image captures.

ONE ROV AUX PORT

Capable of 1 x RS485 / Manipulator / 12VDC.

TWO 1500 LUMEN FRONT LIGHTS

Two front-facing ROV lights with incremental brightness control are achieved using the topside Flight Control Software or, corresponding button commands on the handheld joystick controller.

OCEANUS JOYSTICK HANDHELD CONTROLLER (v3.0)

Manufactured from marine-grade aluminum, the joystick/hand-held controller features 16 integrated function keys, a conveniently positioned thumbwheel and a hall-effect joystick that controls essential ROV functions.

SETTINGS

Internally saved, persist through power cycles.

FLEXIBLE ATTACHMENT OPTIONS

The Oceanus Mini ROV is compatible with the Oceanus Pro topside control system and many Pro Classic ROV accessories.

PORTABLE IP-RATED TOPSIDE ROV CONTROL CASE

With an exterior measurement of 508mm/20.0" (L) x 355.6mm/14.0" (W) x 203.2mm/8.0" (H) and weighing 19.41 kg (42.8 Lb) the IP-rated topside case functions as the operational hub of the Oceanus Mini ROV system.

WIDE-SCREEN VIDEO DISPLAY

18.5" TFT active matrix panel, 1600 nits brightness (full daylight readable), 1024 x 786 resolution.

INDUSTRIAL COMPUTER AND 1TB SOLID-STATE DRIVE TOPSIDE

The topside control case features an i7 industrial computer and a large built-in 1TB SSD which stores hours of content.

TOUCH-SENSITIVE USER INTERFACE

Falcon UAV proprietary Flight Control System software user interface is a touch-sensitive array of command modules that display all essential ROV functions on the topside’s secondary 10.1" TFT touch active matrix panel (1000 nits brightness, full daylight readable, 1280 x 800 resolution).

ON-SCREEN DISPLAY (OSD)

Real-time data includes recording time, voltage, water temperature, depth, and date/time stamp. Heading and attitude are overlaid or embedded with video. Custom user input lines are available. When paired with an accessory, GPS coordinates are displayed as an overlay option, with an enabled data entry field. The addition of a customized logo is available as an optional upgrade.

OCEANUS MULTIPORT

Our Oceanus Multiport communication system allows rapid integration of third-party accessories, software and external processors.

HDMI VIDEO OUTPUT

Share streaming data captured by the ROV onboard camera to an external HD monitor by conveniently connecting via the topside HDMI video out port.

COMPREHENSIVE COVERAGE

Falcon UAV Peace of Mind Guarantee and 3-year limited warranty provide extended coverage on your purchase.*

≠ While possible to dive to a maximum depth of up to 400m using an ROV system outfitted with a standard ROV float block, repeated dive missions beyond 300m will shorten its lifespan and may lead to eventual float block failure. Falcon UAV requires users to upgrade their ROV with an optional Deep Water Buoyancy ROV float block for repeated deep dive missions exceeding 300m.

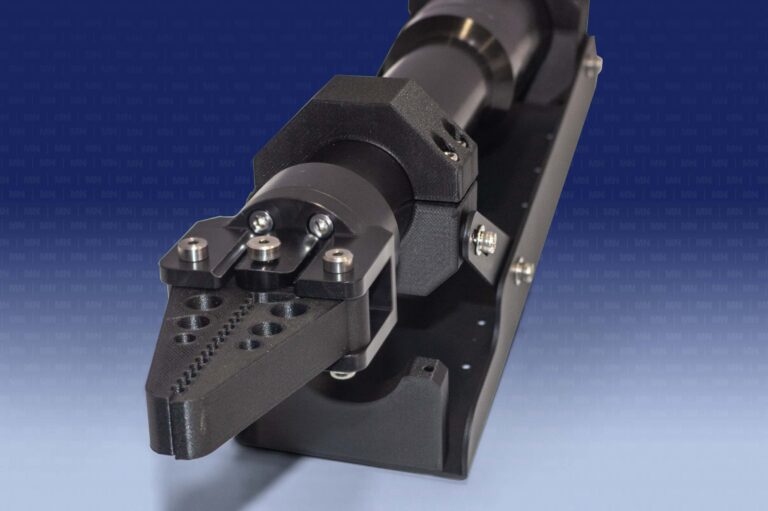

increase productivity with a selection of rOV accessories

Falcon UAV designs and manufactures a range of ROV accessories that include manipulator arms, cutting tools, ROV hull crawlers, and external camera systems and custom mounting brackets. We can design and manufacture bespoke accessories for your individual needs. Contact Falcon UAV for a list of ROV accessories you can use with your Oceanus Mini ROV system.

Terms and conditions

* The three-year limited warranty extension is available when an eligible Falcon UAV Oceanus ROV system is registered within the first year of purchase. For the warranty to remain valid, all scheduled ROV maintenance must be completed as outlined by the manufacturer’s guidelines. At the end of the regular two-year limited warranty period, a third-year extension is provided to customers who adhere to all regimented ROV maintenance. Limited warranty restrictions apply;

a) Falcon UAV Ltd warrants that tether supplied with ROV systems or supplied separately will be free from defects in materials and workmanship under normal use and service for a period of ninety (90) days from the date of shipment.

b) Falcon UAV Ltd warrants that tether whips that were provided as part of an ROV system at time of original shipment will be free from defects in materials and workmanship under normal use and service for a period of six (6) months from date of shipment.

c) Falcon UAV Ltd warrants that thruster motors that were provided as part of an ROV system at the time of original shipment will be free from defects in materials and workmanship under normal use and service for a period of one (1) year from the date of shipment. This does not include wearable parts such as propellers, which are considered a consumable item. Tampering, misuse and regular wear are not covered by warranties.

d) Falcon UAV Ltd warrants that the ROV float block as part of an ROV system at the time of original shipment will be free from defects in materials and workmanship under normal use and service for a period of three (3) months. The three-month warranty does not cover normal wear such as scuffs, scrapes indentations, or other damage to the float block caused by external environmental factors.

e) Falcon UAV Ltd warranties exclude corrosion that may occur on ROV metallic parts caused in part by improper cleaning and storage of ROV after each mission. Refer to your owner’s manual for proper cleaning and maintenance of your ROV system.

× While we strive to ensure the accuracy of all items and descriptions in this document, this is not always possible. Specifications, options, pricing and availability are subject to change without notice. Errors and omissions excepted. We reserve the right to limit quantities.
