Oceanus PRO CLASSIC rov system

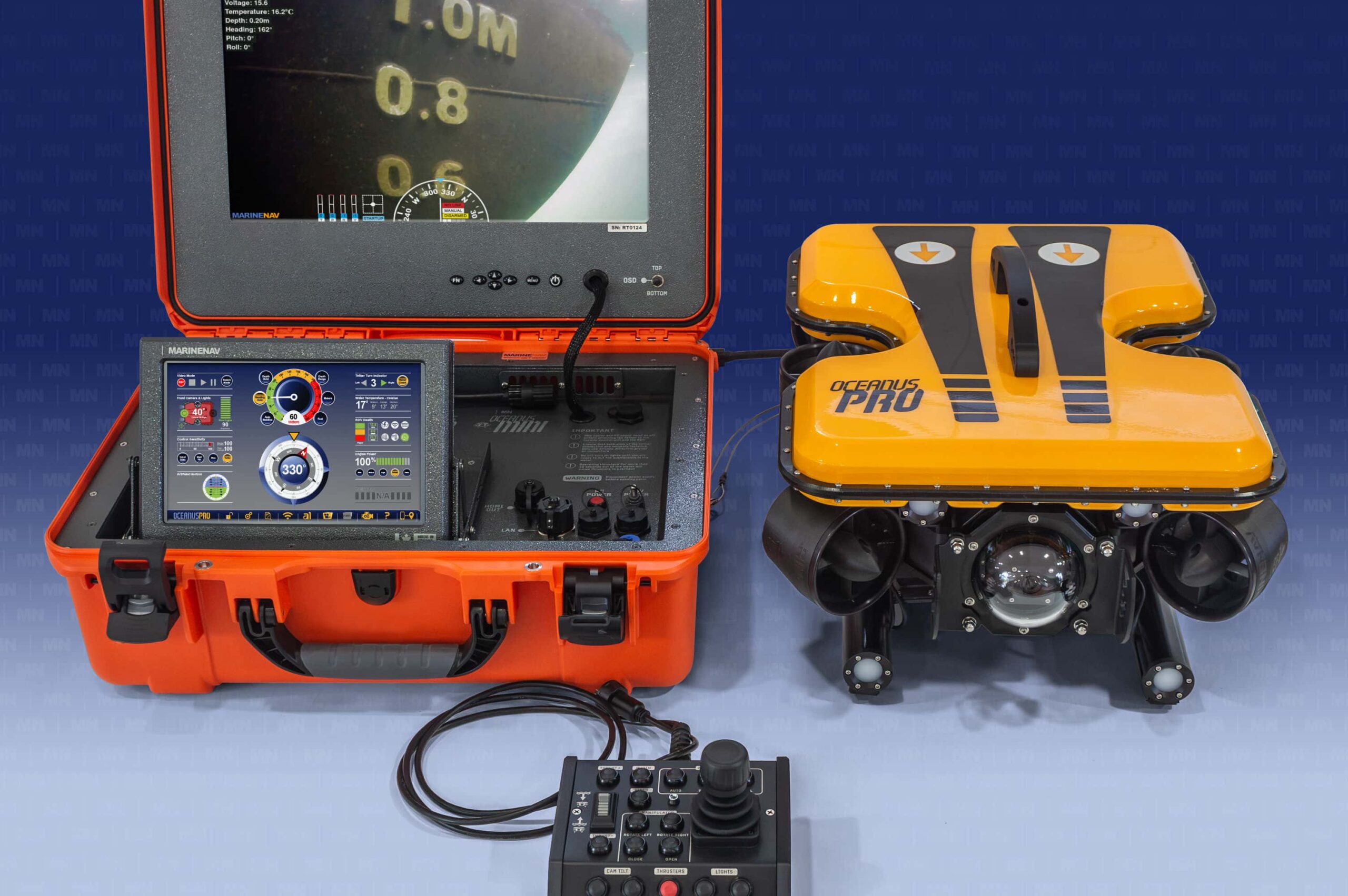

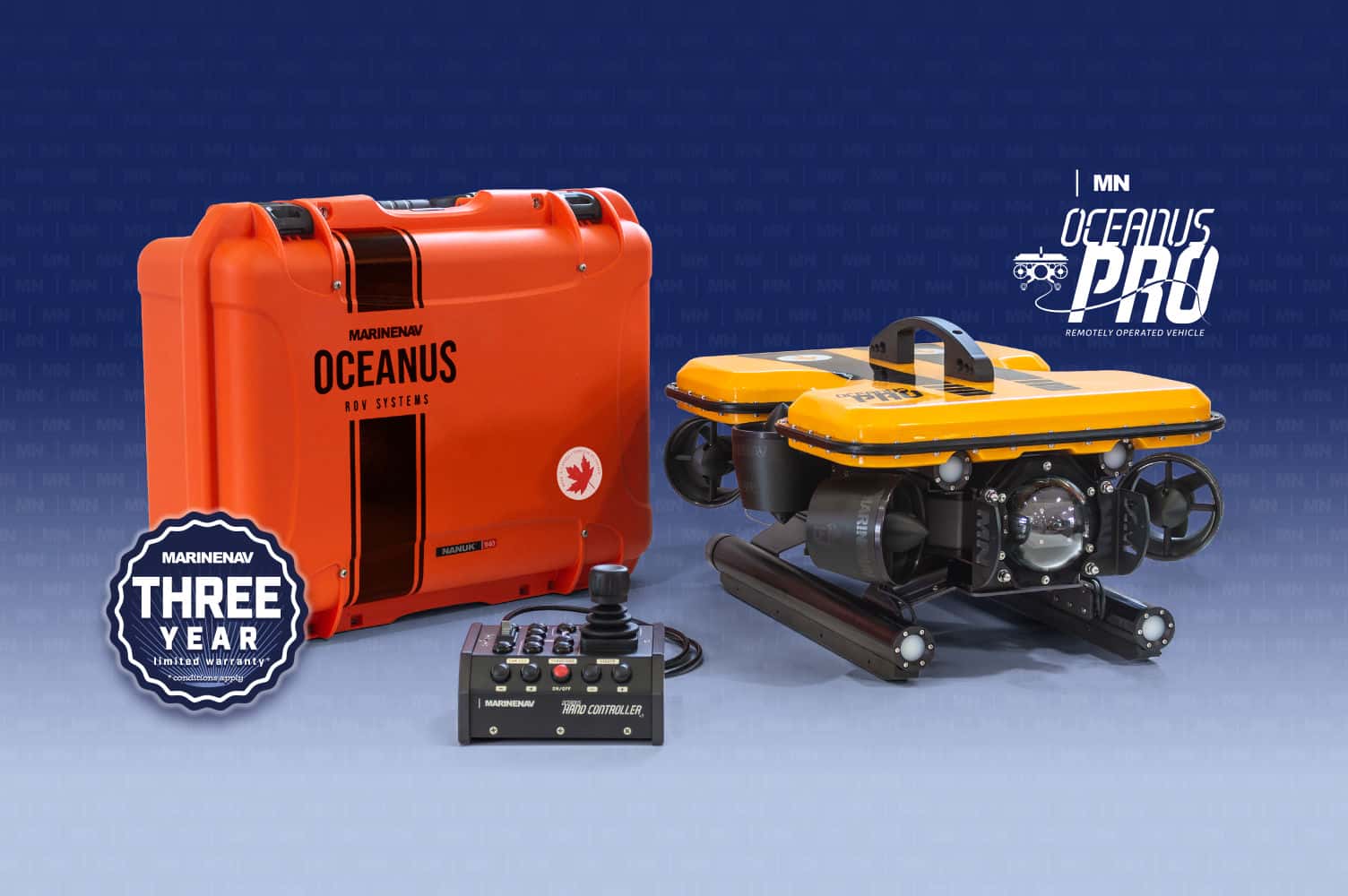

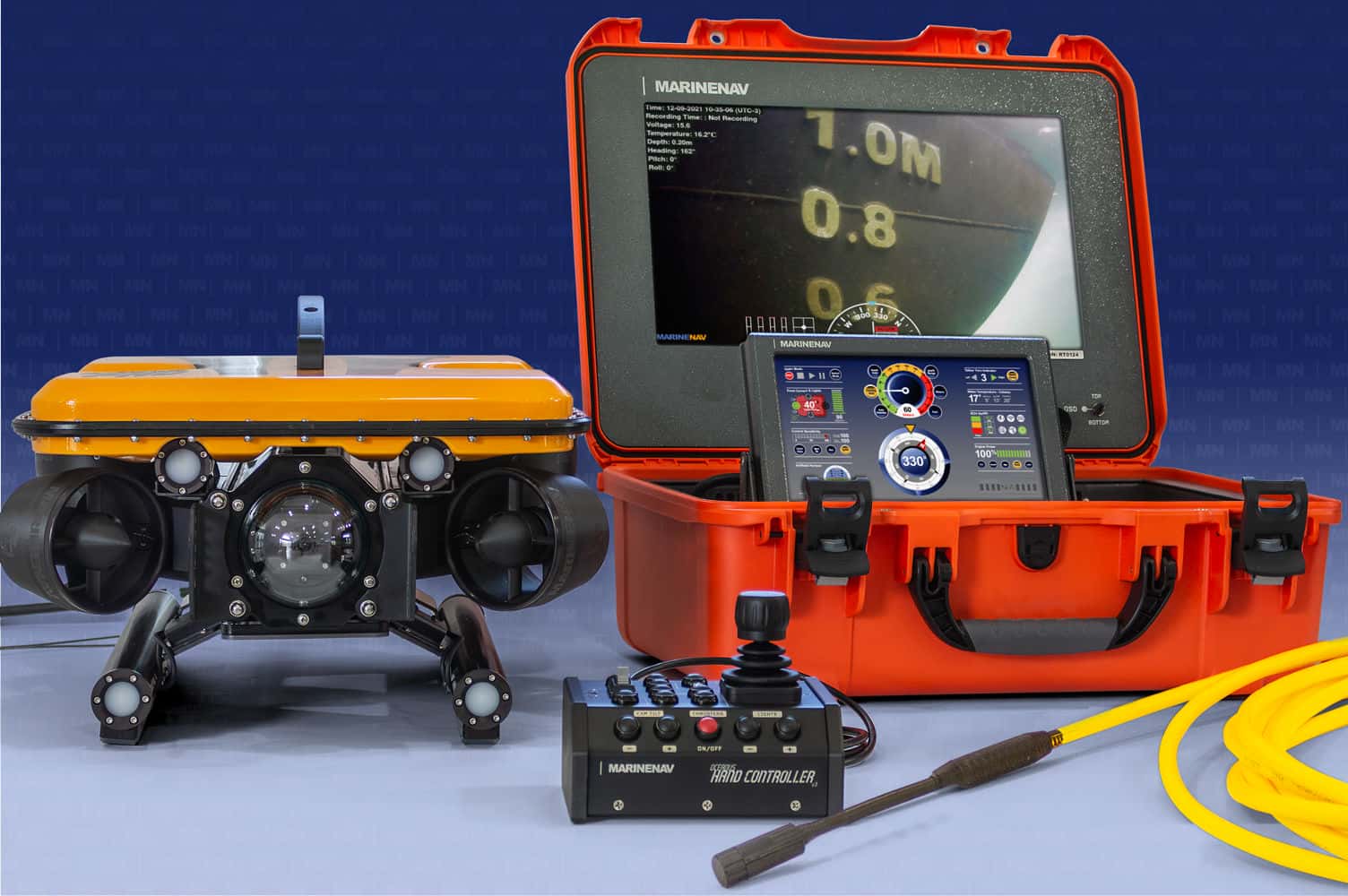

Oceanus Pro Classic ROV, topside control unit and the Oceanus joystick/hand-held controller (v3.0).

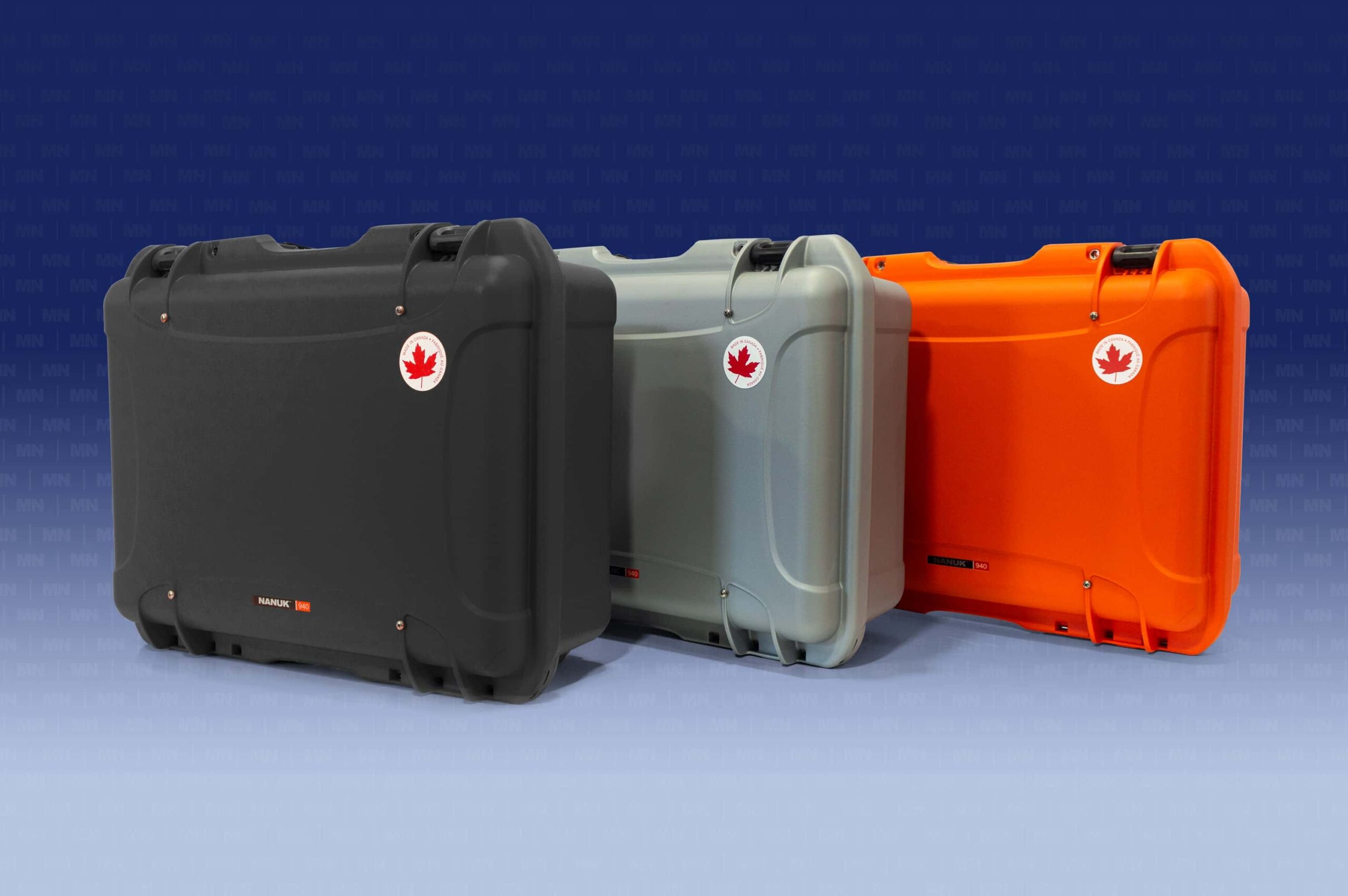

IP-rated rugged topside control cases are available in various colours (based on available inventory).

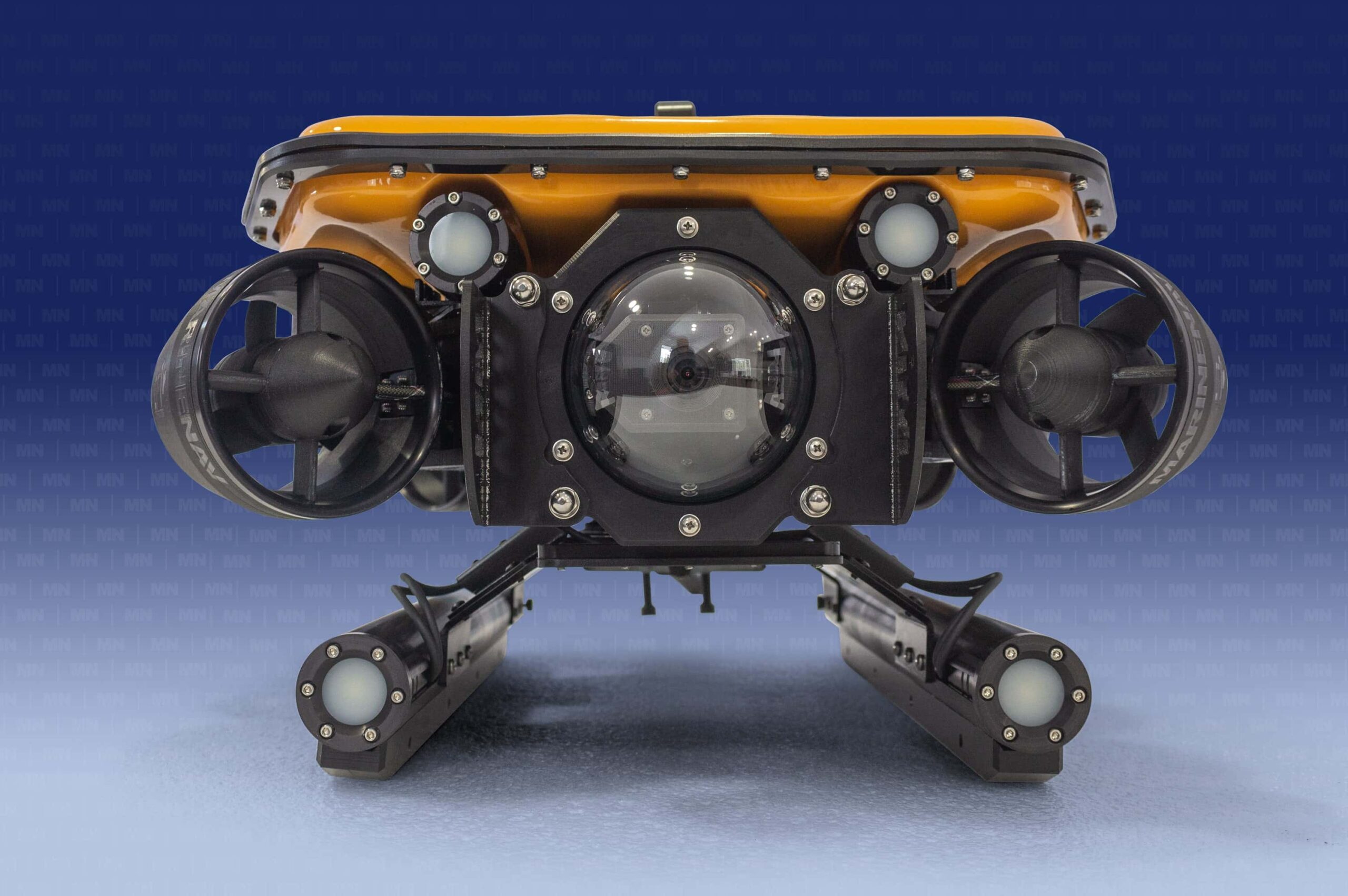

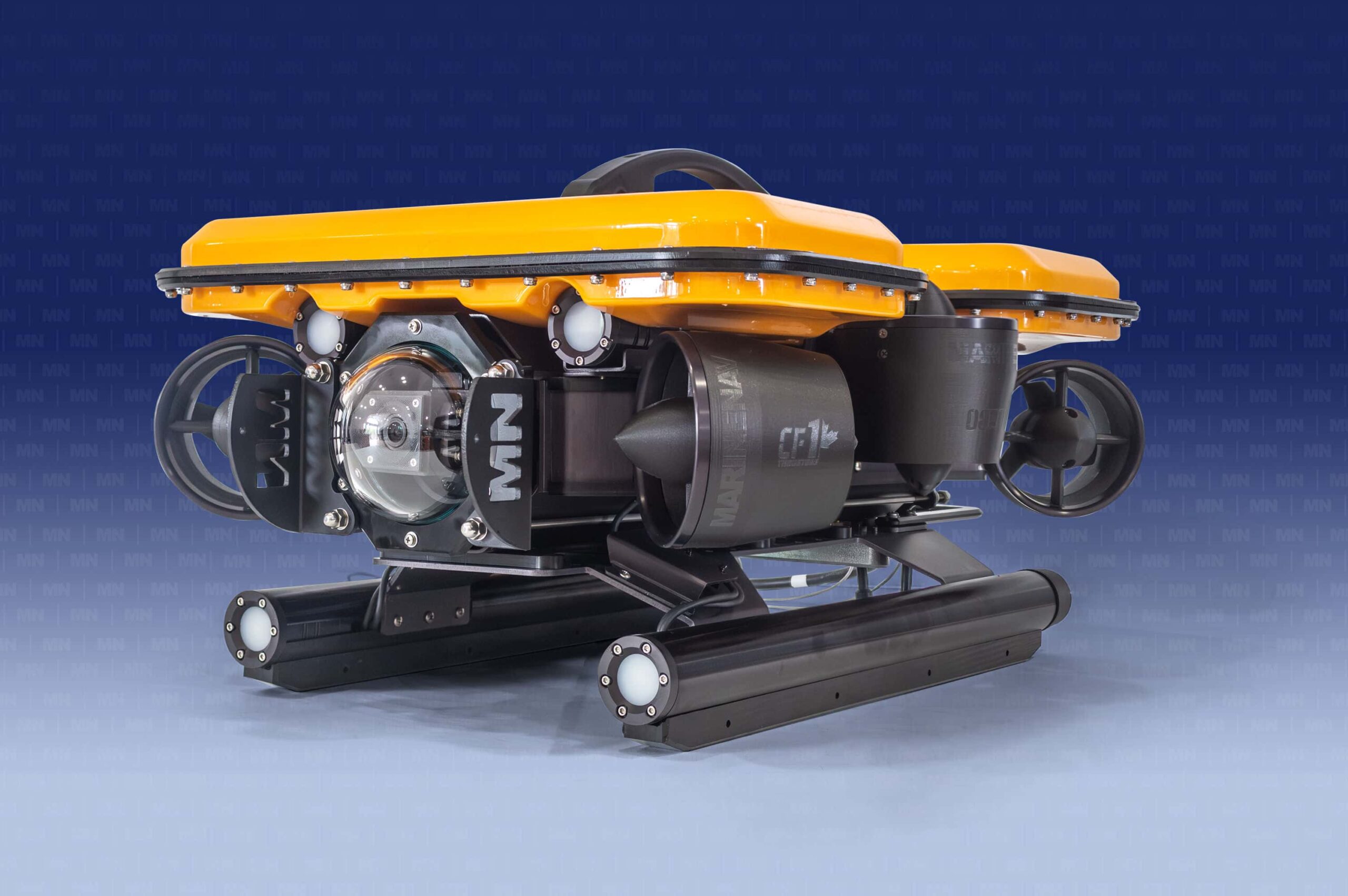

The Oceanus Pro Classic ROV system (tether sold separately).
The topside control system is the operational hub of the ROV system.

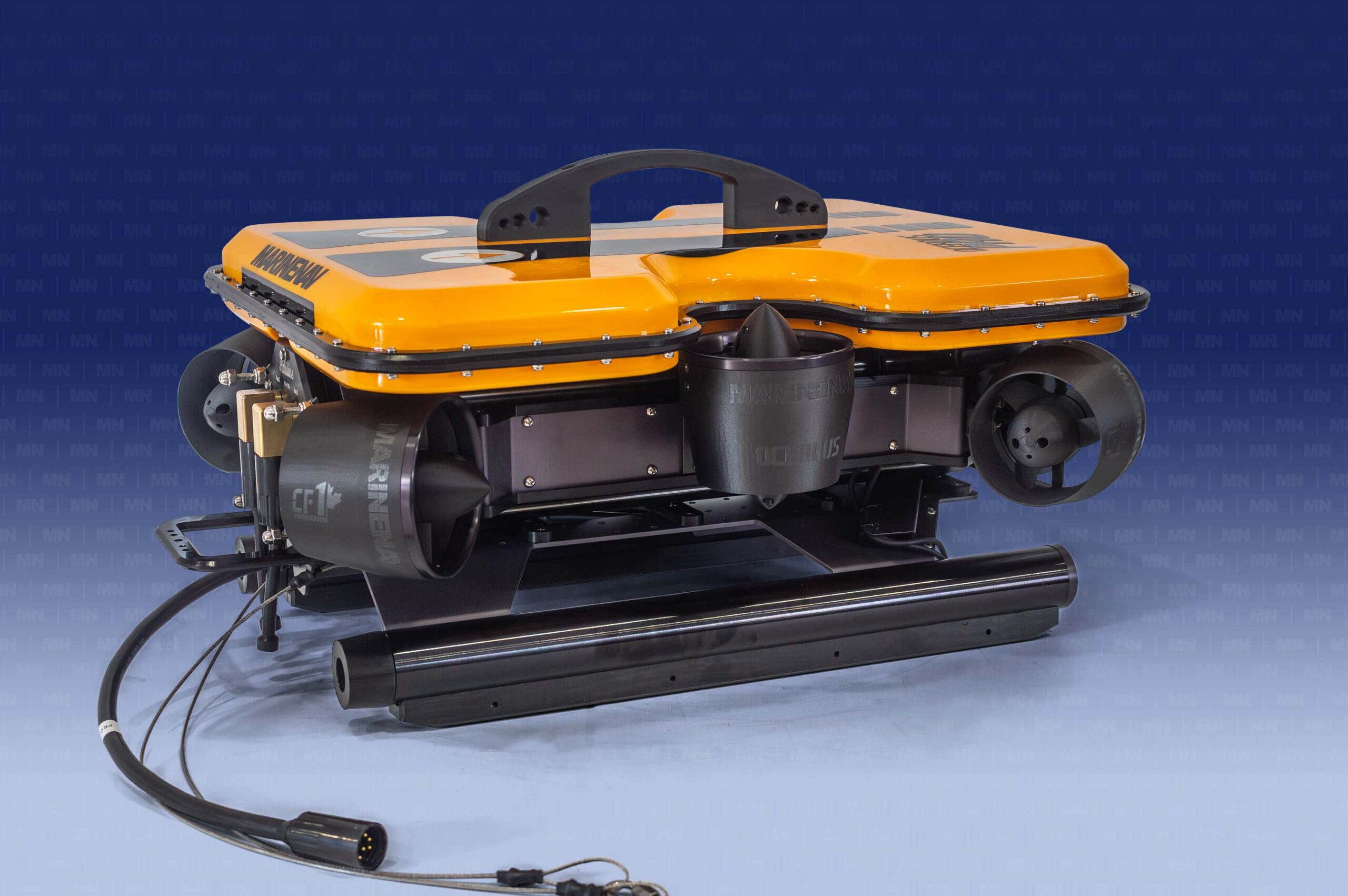

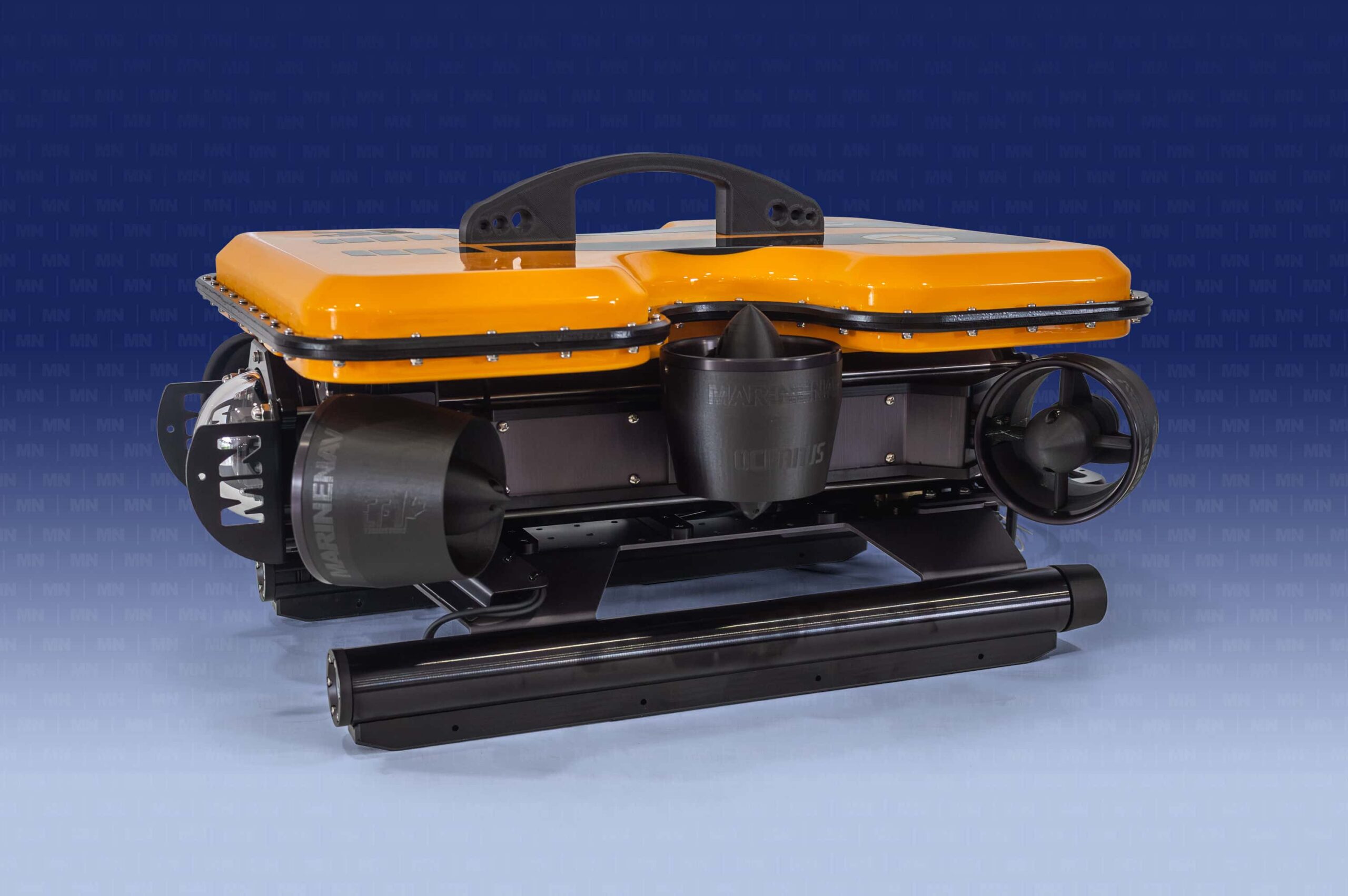

Featuring a redesigned ROV float block for increased stability and lift load capabilities.

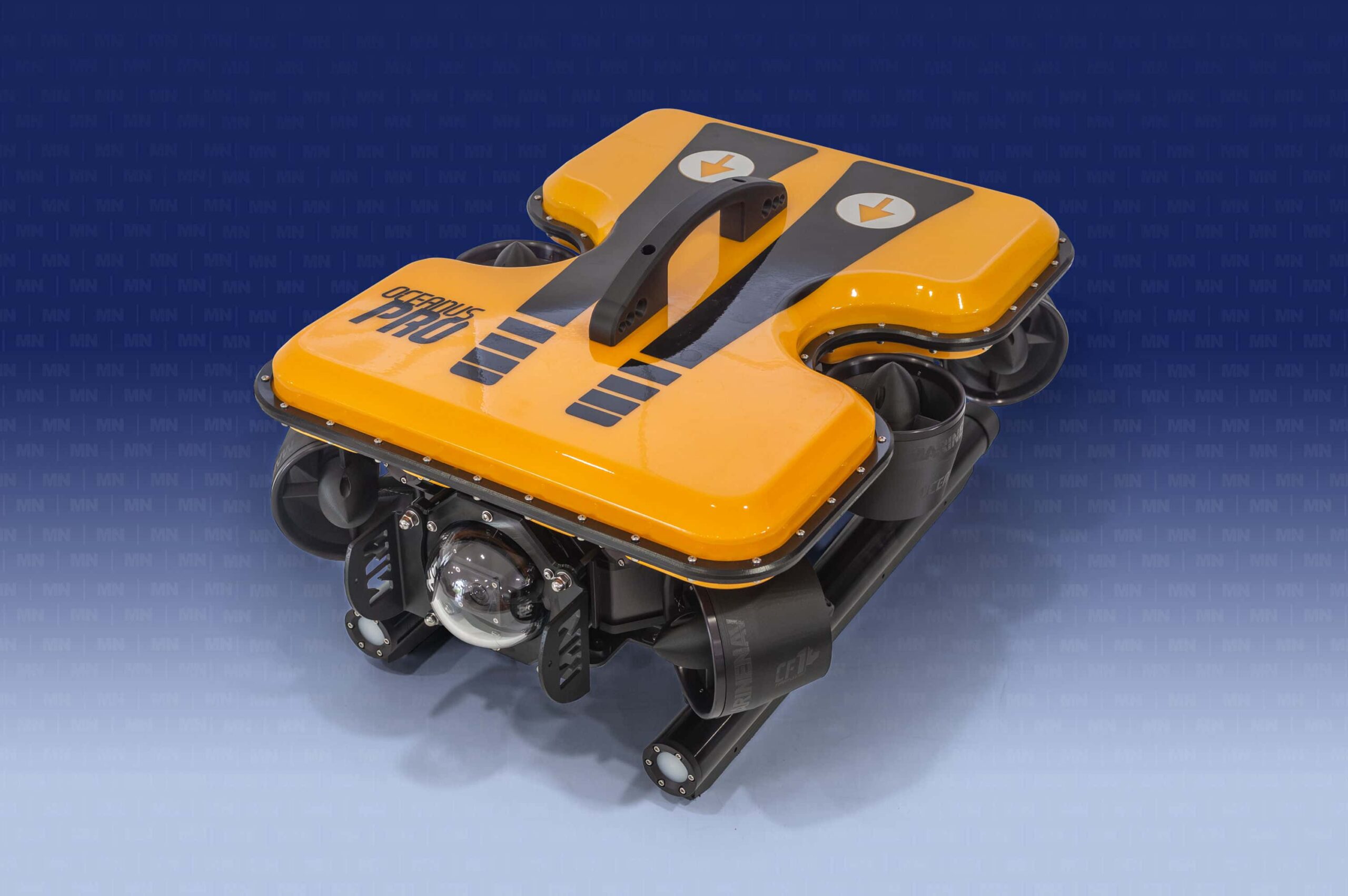

A compact ROV weighing less than 18 kg.

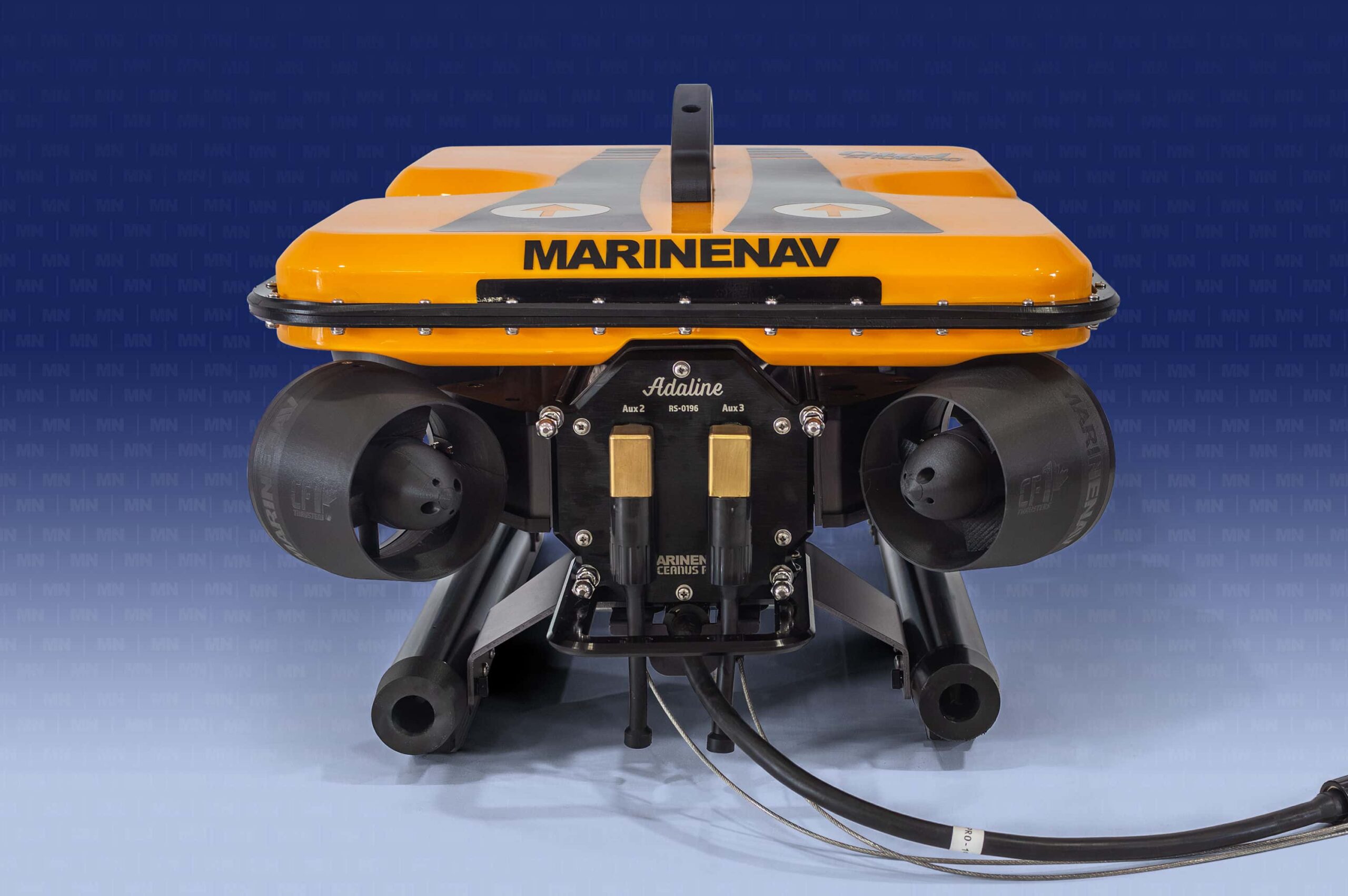

Easily accessed connection ports and ballast weight trays.
605 mm long, 418 mm wide, 279 mm height.
Full depth, horizontal and lateral movement. Auto Depth, Heading Hold and ROV Stabilize flight modes.
605 mm long, 418 mm wide, 279 mm height.
Constructed of marine-grade materials, with the majority of system components manufactured on-site.
Rugged marine-grade hand controller (v3.0) included with the Oceanus Pro ROV system.
starting at
- Oceanus Pro Classic ROV
- Oceanus Mini/Pro ROV topside control system
- Proprietary ROV Flight Control System software
- Oceanus joystick/hand-held controller (v3.0)
- A multi-function wireless keyboard
- 26-ballast weight bolts and nuts
- AC power cable and IP65 HDMI cable
- Spare fasteners kit

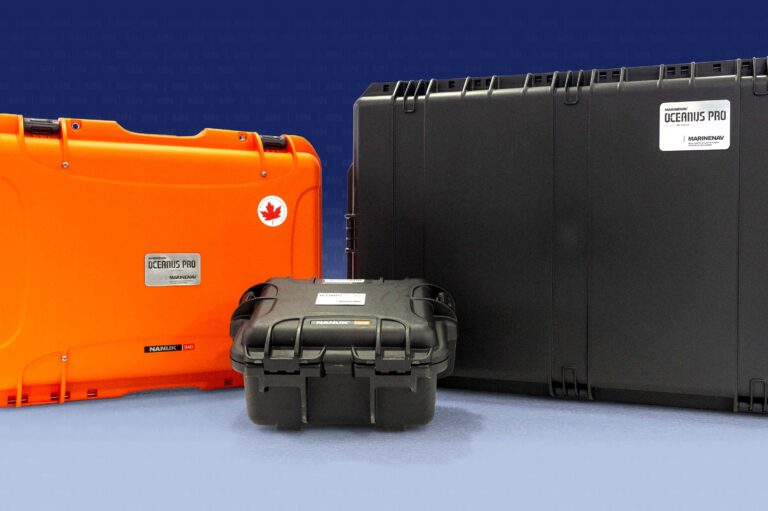

- IP-rated rugged hard-shell transport cases
- Operator manual and support documentation
- Falcon UAV 3-year limited warranty*
Mission-ready with a wide range of available attachment options
Falcon UAV Oceanus Pro Classic ROV system includes these features
Portable, mission-ready ROVs that can be set up and deployed within minutes by a single person.

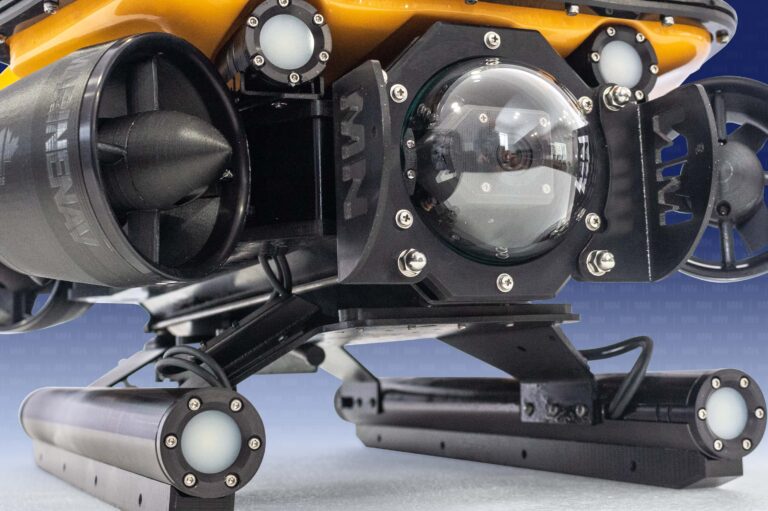

ROV chassis is manufactured from anodized metal. Independently certified.

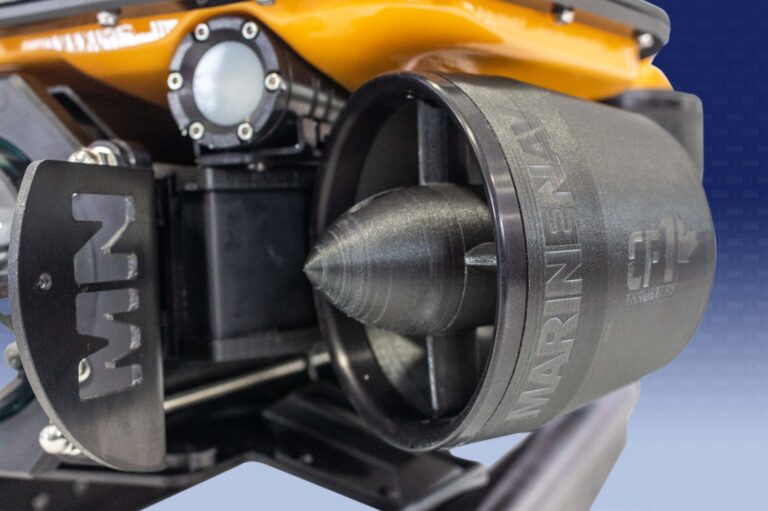

Vectorized carbon fibre thruster design generates power to spare.

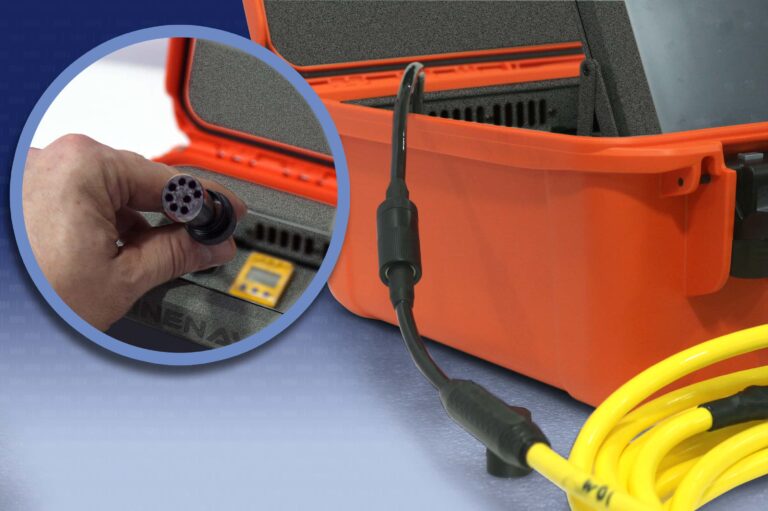

Power over tether design.
Streaming 1080P HD video feed.

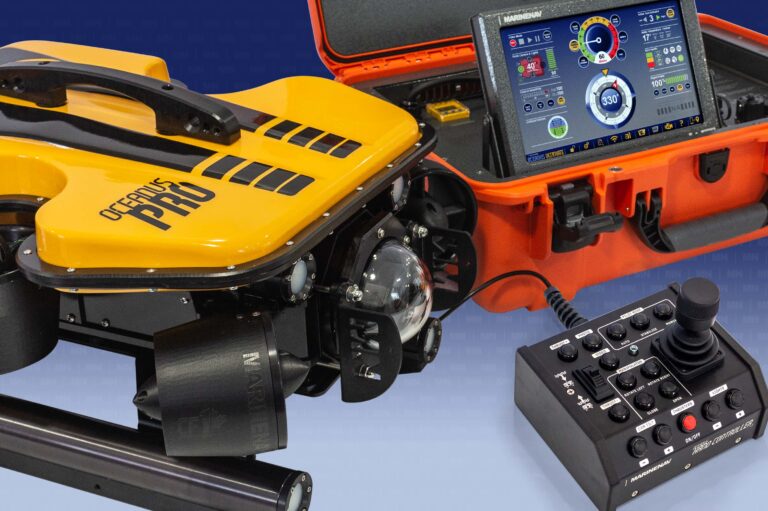

Responsive hand-held ROV controllers. Rugged topside ROV control hub. Touch-sensitive software.
Increased ROV functionality with Falcon UAV designed, and third-party ROV attachments.
International sales and support are provided by an extensive network of authorized distributors.
Additional features include
STANDARD DEPTH RATING OF OF 400m (1312 ft).
The Oceanus Pro Classic ROV is independently certified to a depth of 400m (1312ft). Repeated dives to depths beyond 300m require an optional system upgrade.≠
MAXIMUM SPEED OF 5 KNOTS
Maximum speed test performed with the ROV fitted with an optional performance float block. (ROV ballast weights and accessories were not included when the ROV speed test was conducted).
ROV DRY WEIGHT OF 17.91 kg (39.5 Lb)
Dry weight does not include the ROV ballast weights, the tether whip, the ROV tether and any ROV accessory.
LATERAL AXIS ROV MOVEMENT
An unparalleled control system and superior thruster performance deliver fully vectorized ROV maneuverability, control ROV depth, horizontal and lateral movement. ROV flight controls include auto-depth, heading hold and ROV stabilize modes.

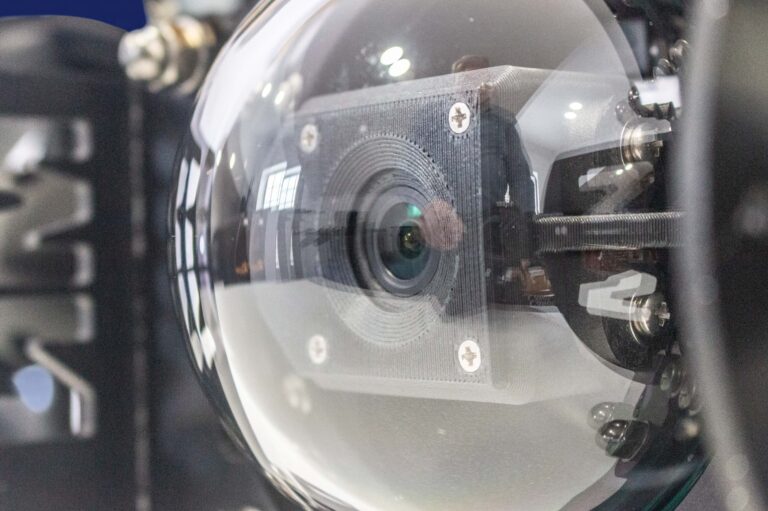

1080P HD VIDEO
A high-definition camera with +/- 180° tilt functionality provides stunning image captures. 120° field of view and camera focus range from the face of the housing dome to infinity with manual control.
FOUR ROV AUX PORTS
Capable of Ethernet/12VDC/24VDC/Manipulator Optional available system upgrades - Optional dedicated DVL port - Optional external camera port
FOUR 1500 LUMEN FRONT LIGHTS
Four front-facing ROV lights with phased brightness control when using topside Flight Control System software or with button commands through the Oceanus joystick/hand-held controller (v3.0).

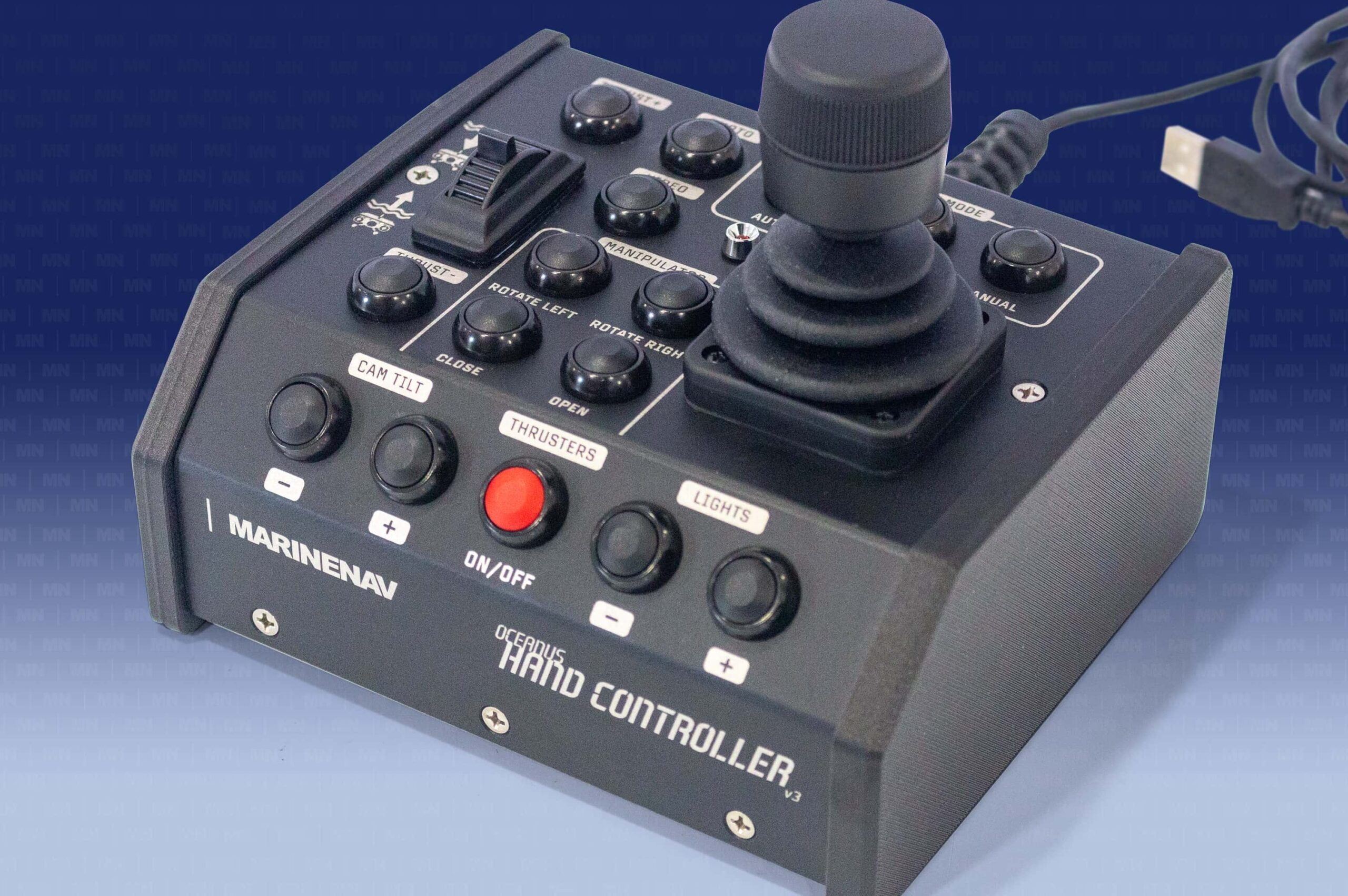

OCEANUS JOYSTICK/HAND-HELD CONTROLLER (v3.0)
Manufactured from marine-grade aluminum, the joystick/hand-held controller features 16 integrated function keys, a conveniently positioned thumbwheel and a hall-effect joystick that controls essential ROV functions.
SETTINGS
Internally saved, persist through power cycles.
FLEXIBLE ATTACHMENT OPTIONS
The Oceanus Pro Classic ROV has three built-in auxiliary ports to work with a wide range of Falcon UAV and third-party ROV accessories. (1 x ethernet, 2 x RS485/Manipulator/12V/24 DC/aux camera).

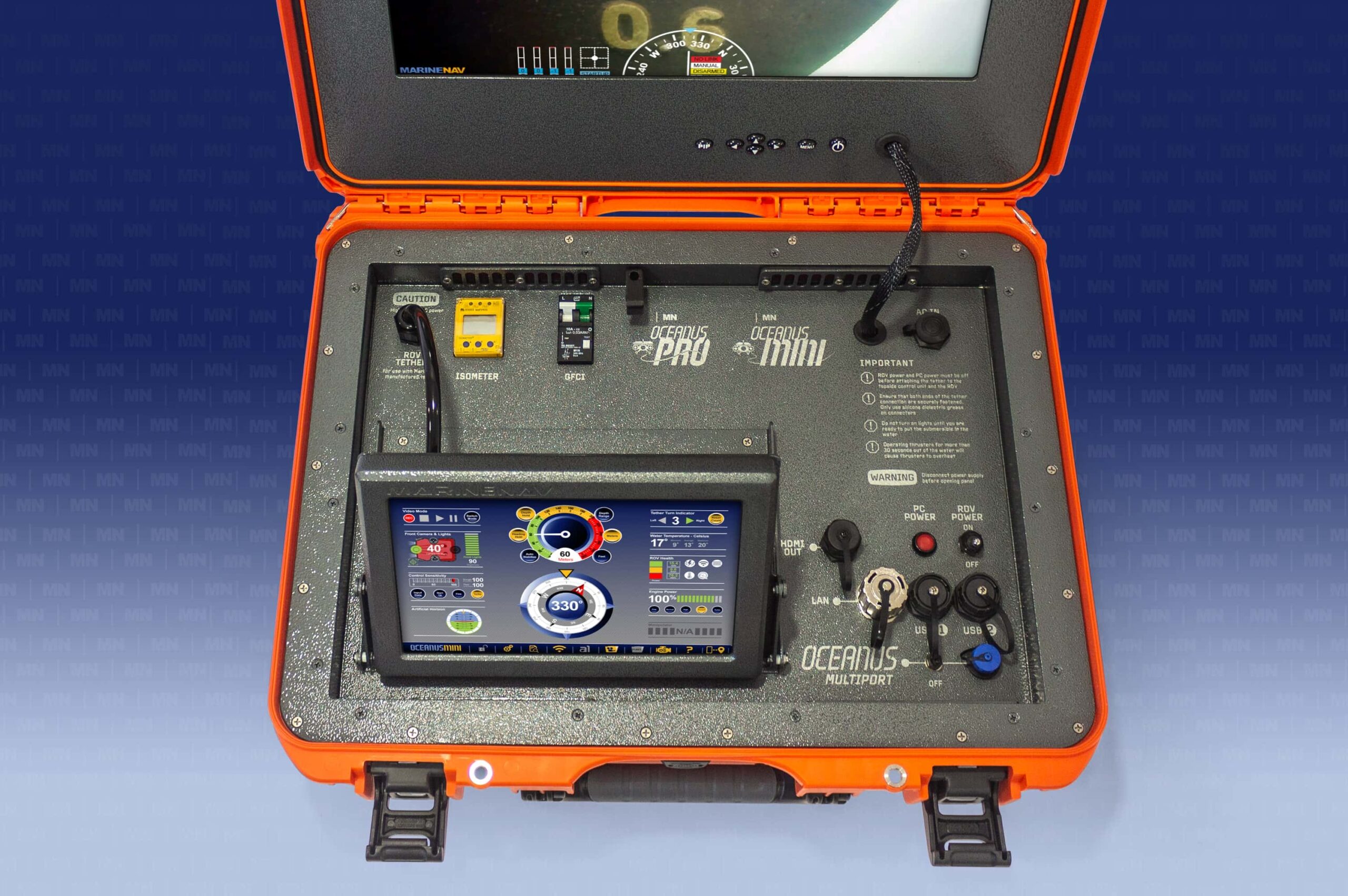

PORTABLE IP-RATED TOPSIDE ROV CONTROL CASE
With an exterior measurement of 508mm/20.0" (L) x 355.6mm/14.0" (W) x 203.2mm/8.0" (H) and weighing 19.41 kg (42.8 Lb) the IP-rated topside case functions as the operational hub of the Oceanus Pro Classic ROV system.
WIDE-SCREEN VIDEO DISPLAY
18.5" TFT active matrix panel, 1600 nits brightness (full daylight readable), 1024 x 786 resolution.
INDUSTRIAL COMPUTER AND 1TB SOLID-STATE DRIVE TOPSIDE
The topside control case features an i7 industrial computer and a large built-in 1TB SSD which stores hours of content.
TOUCH-SENSITIVE USER INTERFACE
Our proprietary Flight Control System software user interface is a touch-sensitive array of command modules that display all essential ROV functions on a secondary 10.1-inch TFT touch active matrix panel (1000 nits brightness, full daylight readable, 1280 x 800 resolution).
ON-SCREEN DISPLAY (OSD)
Real-time data includes recording time, voltage, water temperature, depth, and date/time stamp. Heading and attitude are overlaid or embedded with video. Custom user input lines are available. When paired with an accessory, GPS coordinates are displayed as an overlay option, with an enabled data entry field. The addition of a customized logo is available as an optional upgrade.
OCEANUS MULTIPORT
Our Oceanus Multiport communication system allows rapid integration of third-party accessories, software and external processors.
HDMI VIDEO OUTPUT
Share streaming data captured by the ROV onboard camera to an external HD monitor by conveniently connecting via the topside HDMI video out port.
WIRELESS BROADCASTING FEATURE
ROV pilot can share streaming video to multiple parties with access to web-enabled devices via a simple built-in interface.
OPTIONAL FALCON UAV FLEET MANAGEMENT SUITE
Monitor the status and health of the ROV remotely for complete asset management of one or multiple systems.
COMPREHENSIVE COVERAGE
Falcon UAV Peace of Mind Guarantee and 3-year limited warranty provide extended coverage on your purchase.*
unique trial offers
Falcon’s Oceanus ROV systems provide the rugged durability customers demand from ROV systems. We’re confident our Oceanus ROVs outperform competitors’ same-class ROVs and extend the following trial offers to first-time customers and potential distributors considering the purchase of an Oceanus Pro Classic ROV system.
The 5 or 5 trial offer available to first-time customers
Falcon provides first-time customers with a one-time offer of five-day or five operational hours trial period of the Oceanus Pro Classic ROV system. Not satisfied with your ROV? Return your purchased ROV system within the trial period for a full refund.▲
▲ Restrictions apply. Download the 5 or 5 trial offer pdf, or contact a Falcon authorized dealer for details.
The 10 or 10 trial offer available to potential distributors
Potential dealers/distributors receive a one-time offer of ten days or ten hours to try our Oceanus Pro Classic ROV system. At the end of the trial offer, either return the ROV or issue a purchase order within the 30-day term and receive a 25% discount off the listed dealer price.▼
▼ Restrictions apply. Download the 10 or 10 trial offer pdf, or contact Falcon for details.
increase productivity with a selection of rOV accessories

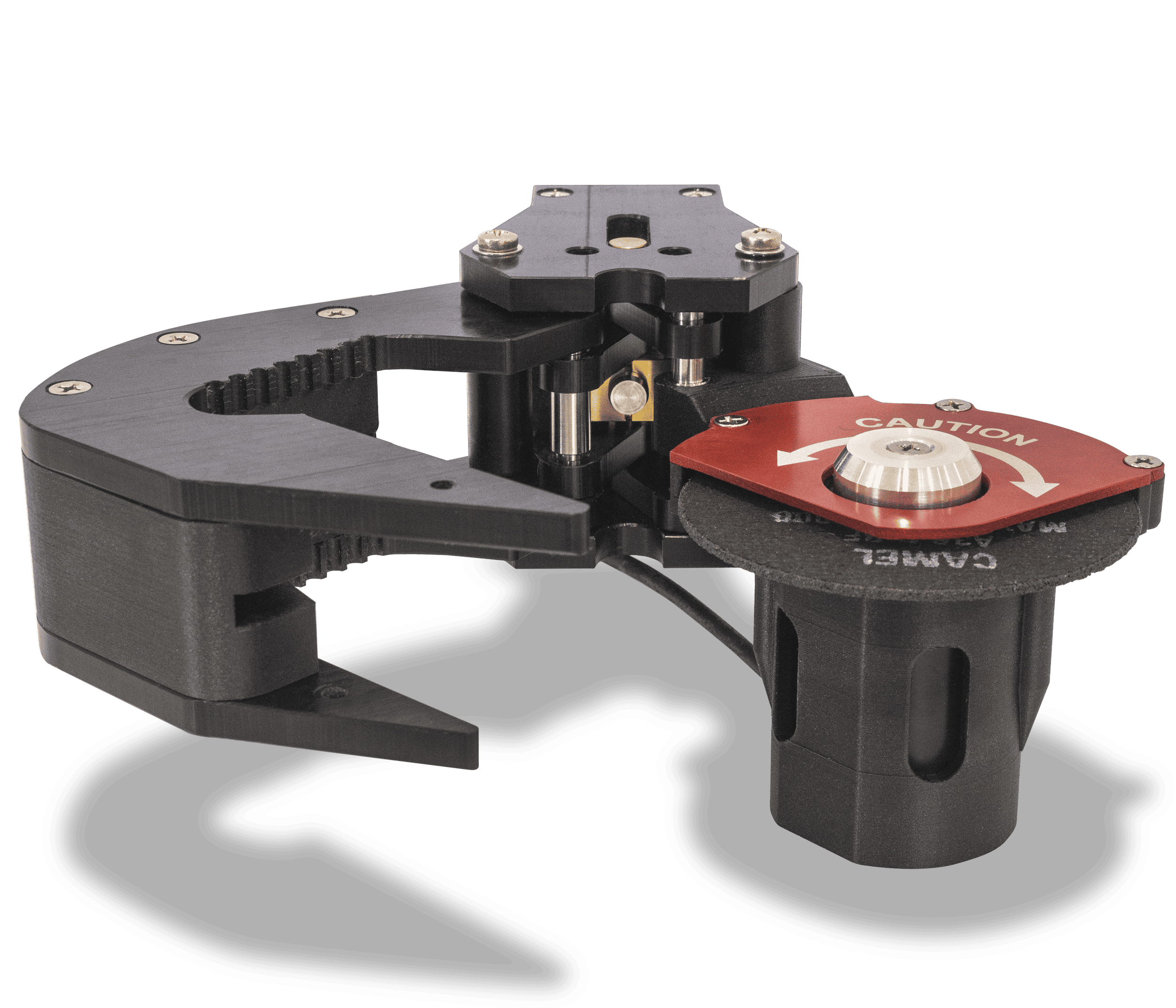

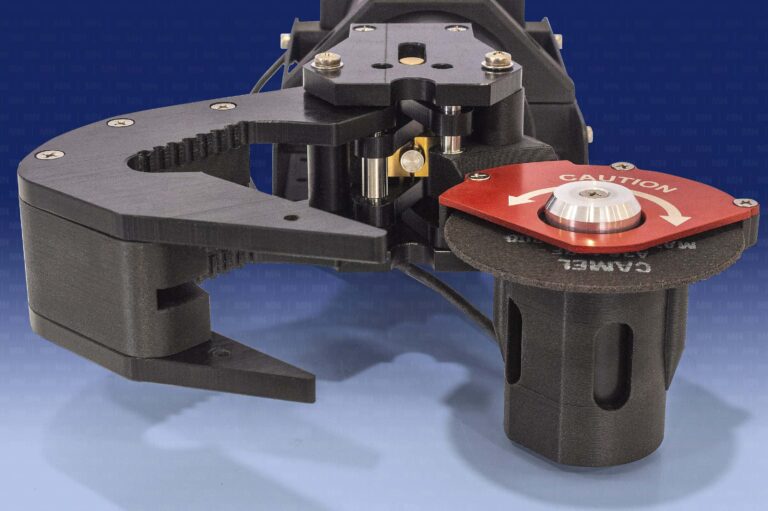

Falcon designs and manufactures a range of ROV accessories that include manipulator arms, cutting tools, ROV hull crawlers, and external camera systems and custom mounting brackets. We can design and manufacture bespoke accessories for your individual needs. Contact Falcon for a list of ROV accessories you can use with your Oceanus Pro-Classic ROV system.
Terms and conditions
* The three-year limited warranty extension is available when an eligible Falcon UAV Oceanus ROV system is registered within the first year of purchase. For the warranty to remain valid, all scheduled ROV maintenance must be completed as outlined by the manufacturer’s guidelines. At the end of the regular two-year limited warranty period, a third-year extension is provided to customers who adhere to all regimented ROV maintenance. Limited warranty restrictions apply;
a) Falcon UAV Ltd warrants that tether supplied with ROV systems or supplied separately will be free from defects in materials and workmanship under normal use and service for a period of ninety (90) days from the date of shipment.
b) Falcon UAV Ltd warrants that tether whips that were provided as part of an ROV system at time of original shipment will be free from defects in materials and workmanship under normal use and service for a period of six (6) months from date of shipment.
c) Falcon UAV Ltd warrants that thruster motors that were provided as part of an ROV system at the time of original shipment will be free from defects in materials and workmanship under normal use and service for a period of one (1) year from the date of shipment. This does not include wearable parts such as propellers, which are considered a consumable item. Tampering, misuse and regular wear are not covered by warranties.
d) Falcon UAV Ltd warrants that the ROV float block as part of an ROV system at the time of original shipment will be free from defects in materials and workmanship under normal use and service for a period of three (3) months. The three-month warranty does not cover normal wear such as scuffs, scrapes indentations, or other damage to the float block caused by external environmental factors.
e) Falcon UAV Ltd warranties exclude corrosion that may occur on ROV metallic parts caused in part by improper cleaning and storage of ROV after each mission. Refer to your owner’s manual for proper cleaning and maintenance of your ROV system.
