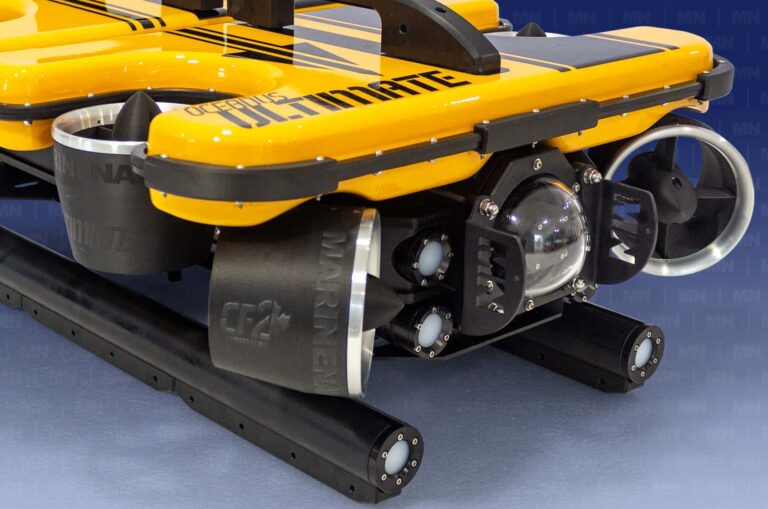

Oceanus Ultimate rov system
Falcon’s most powerful ROV system includes a powerful eight-thruster ROV featuring dual built-in 1080P HD camera systems and a 3000 series professional grade topside that delivers twice the power to ROV thrusters. Accessorize your ROV with Falcon smart attachments and optional third-party accessories including DVL and USBL systems for semi-auto-pilot functionality. Δ

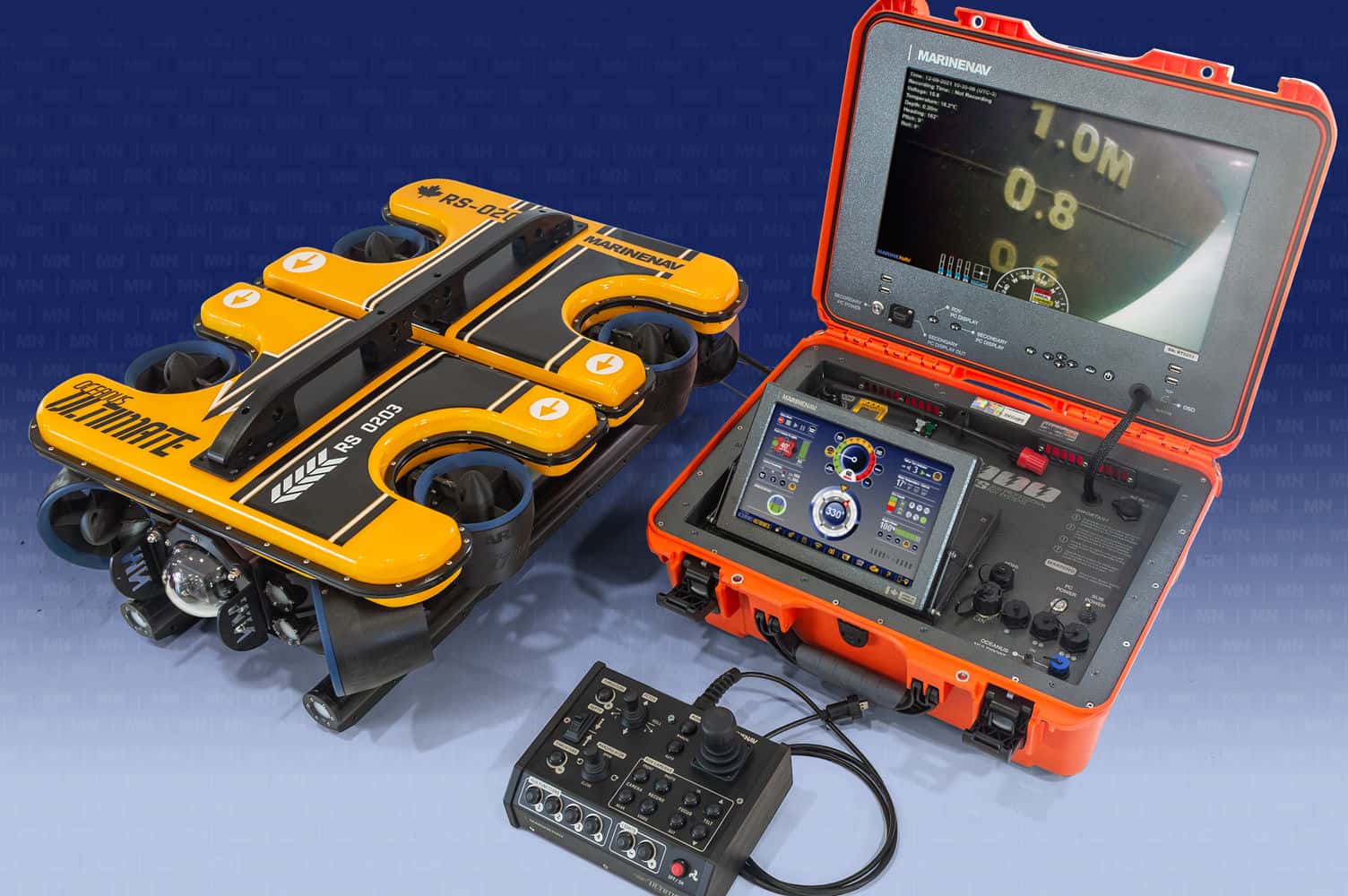

The Oceanus Ultimate ROV system includes an ROV, topside control system and Oceanus joystick/hand-held controller (v4.0).

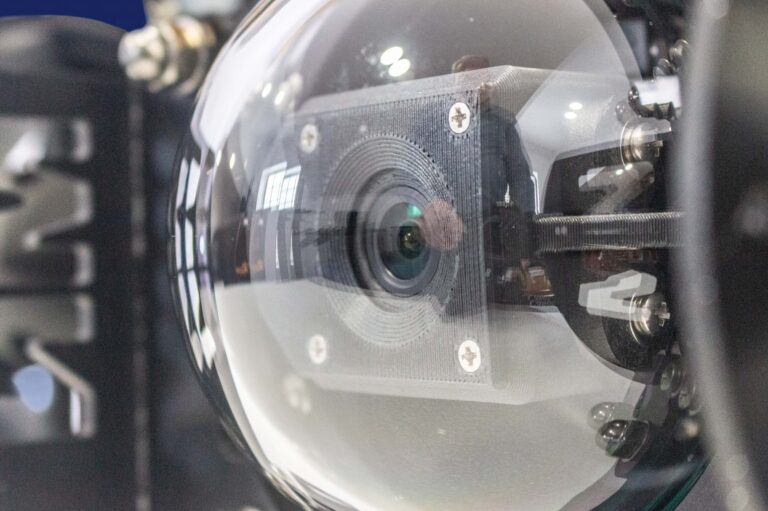

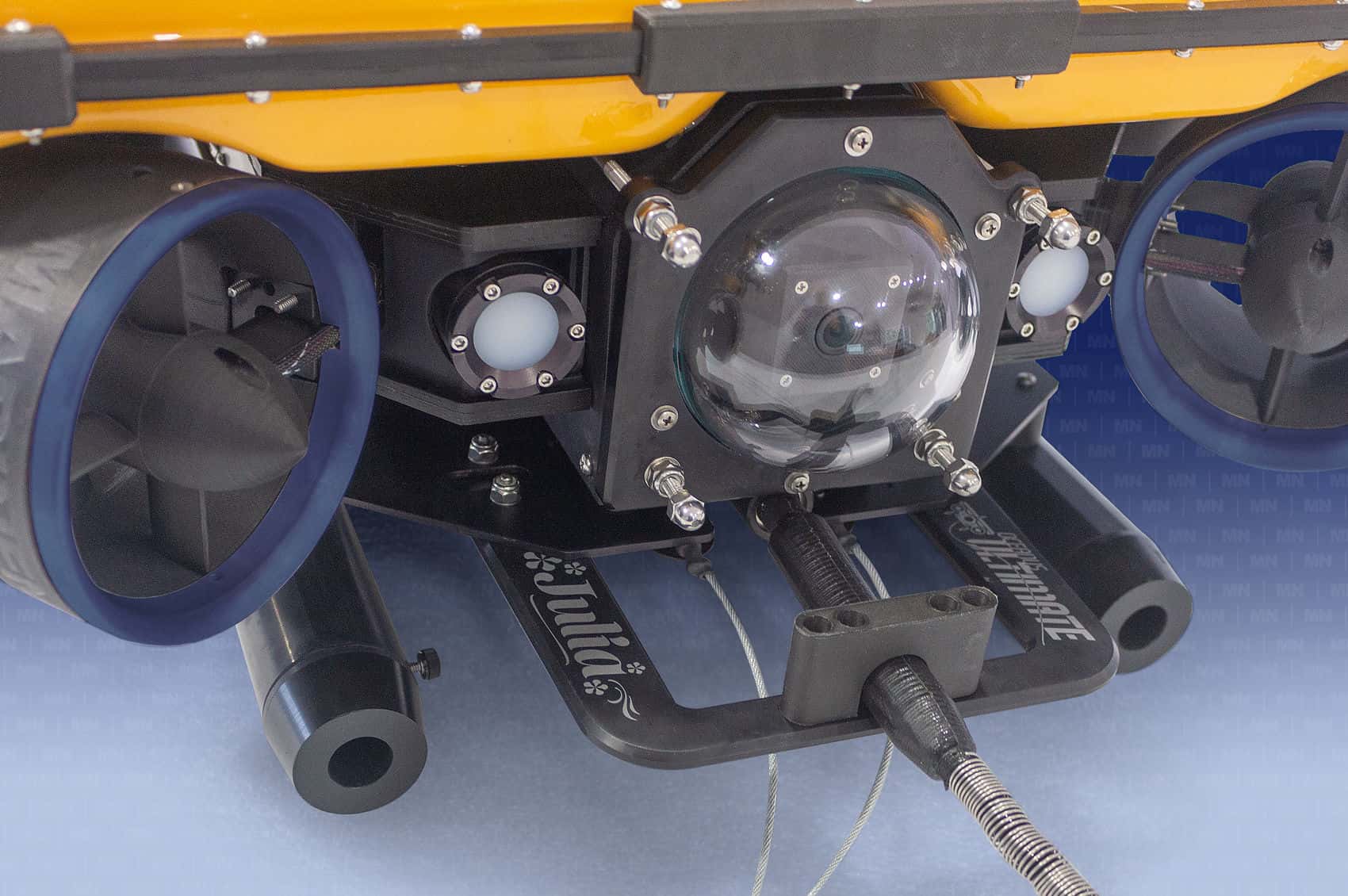

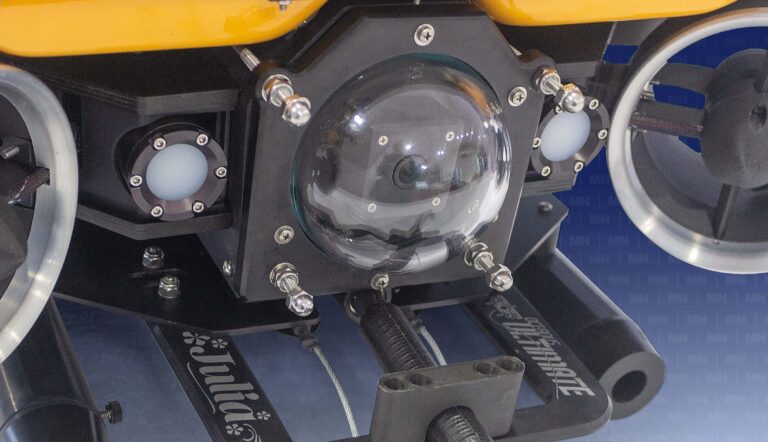

Front Camera: +/- 180° Pitch (Vertical Rotation) with six front-facing 1500 Lumen lights.

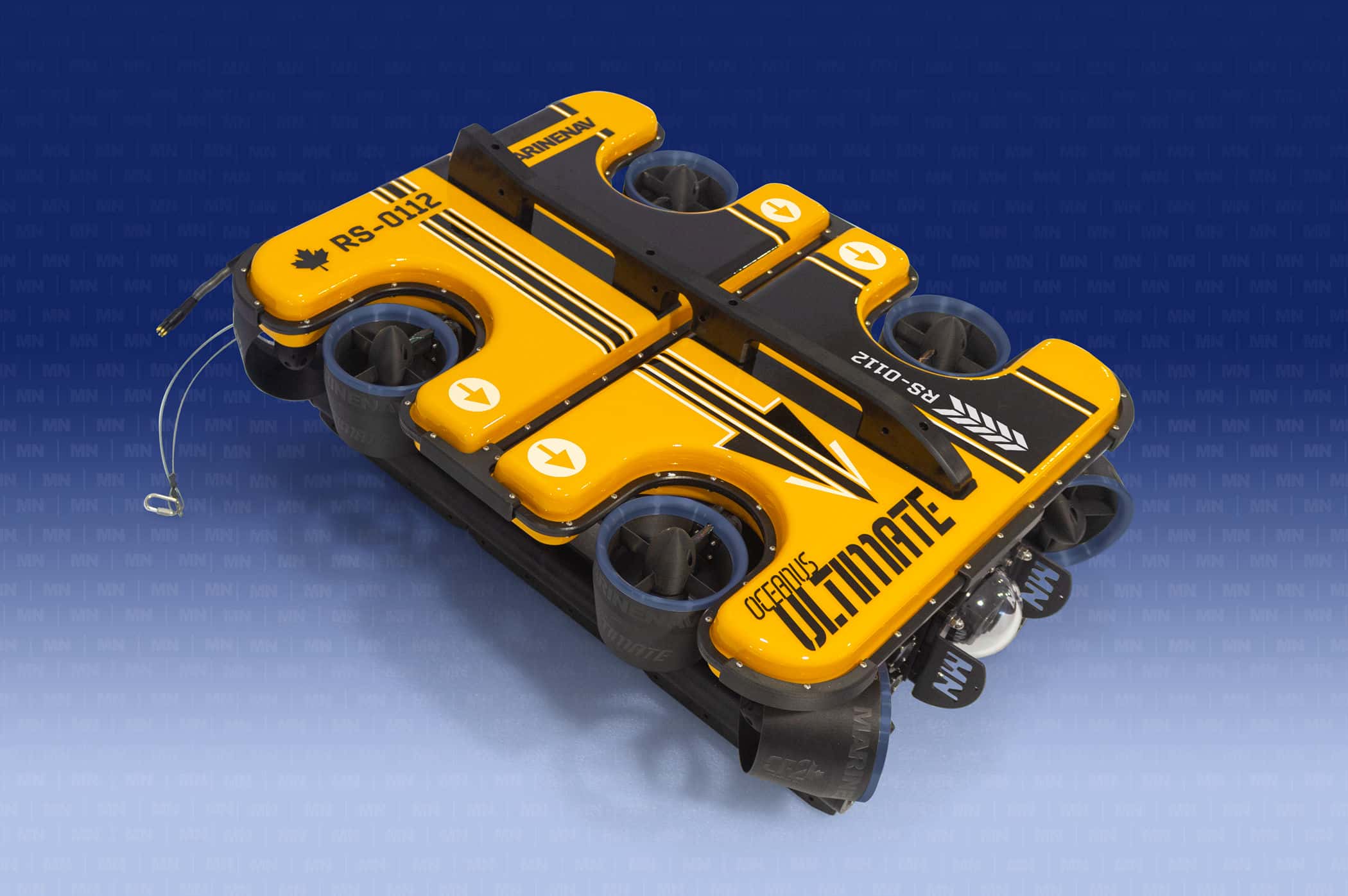

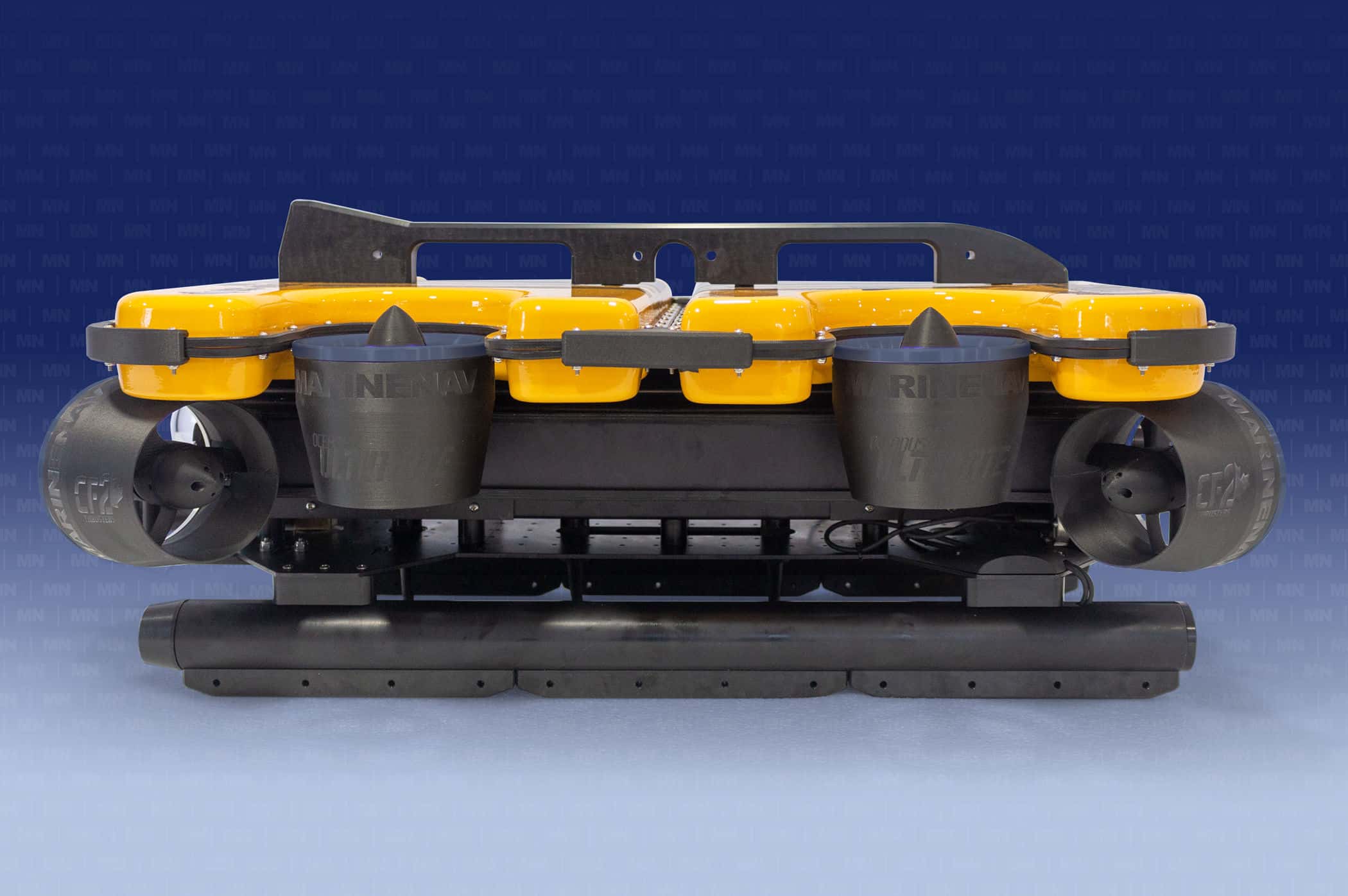

Distinctive eight thruster design provides horizontal and vertical thrust, pitch and roll and controlled ROV lateral movement.
Independently certified to depths of 400m with optional system upgrades for a maximum ROV depth of 500m.

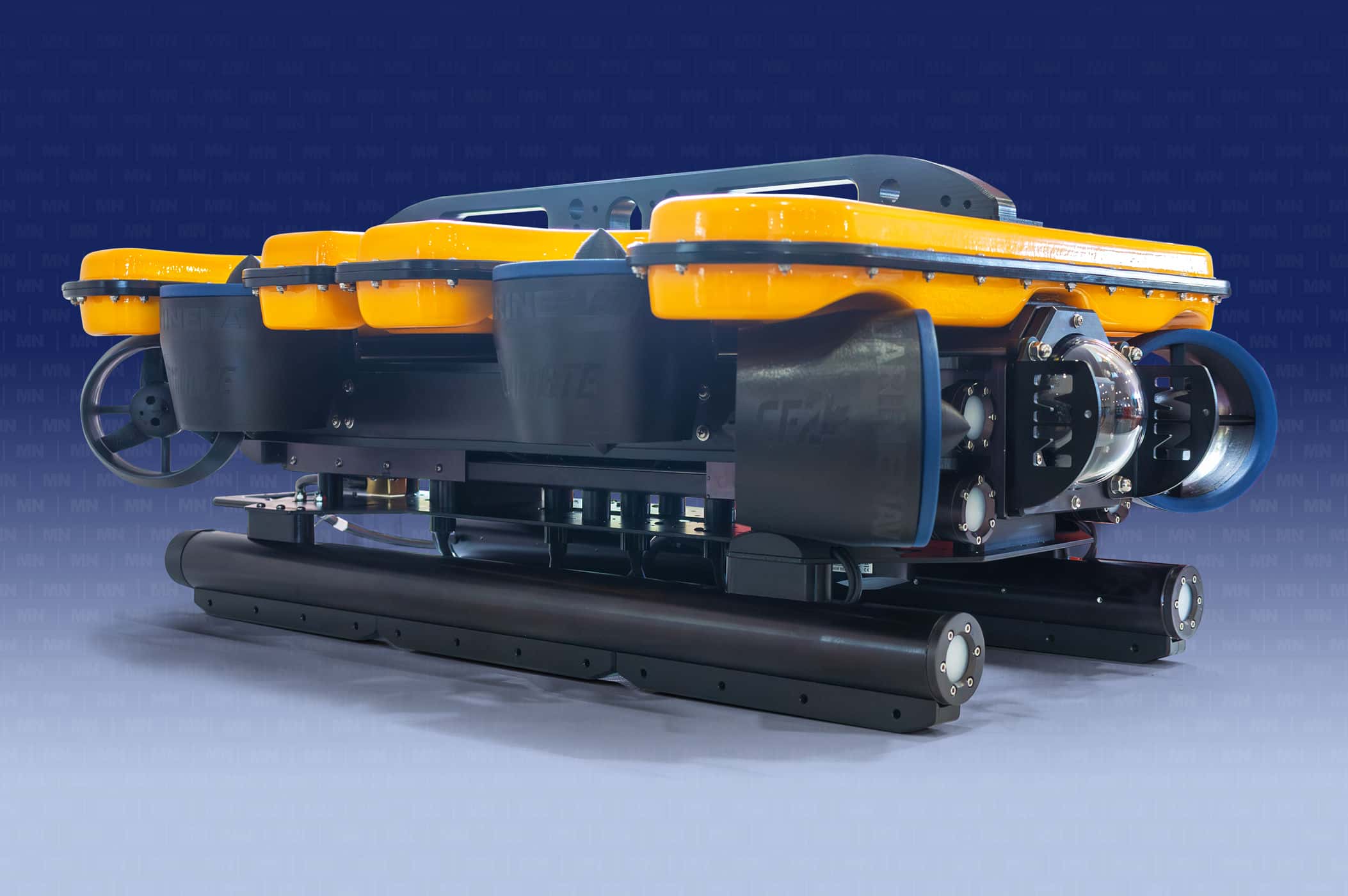

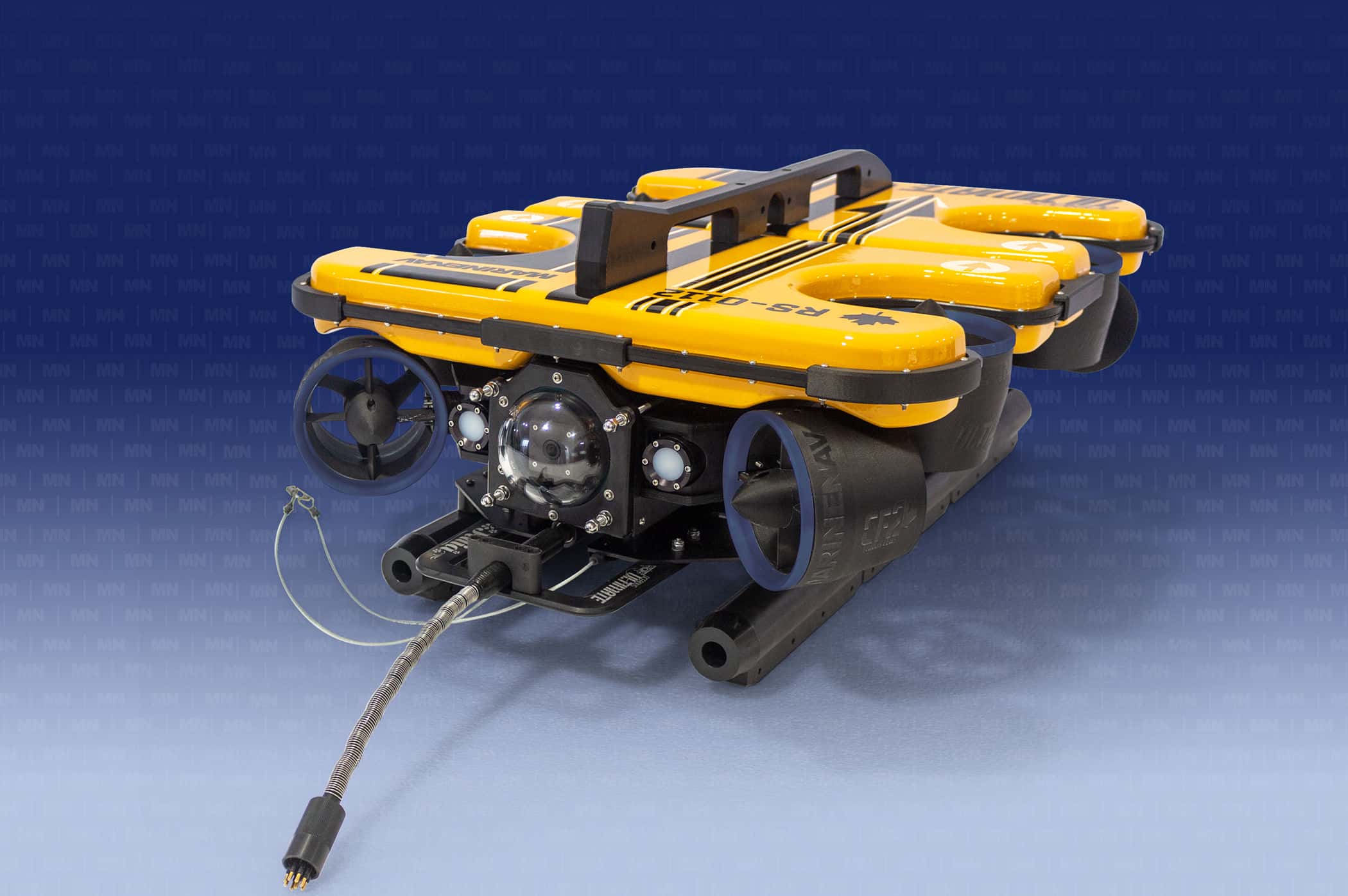

The Oceanus Ultimate ROV weighs 30.25 kg (66.7 Lb) and measures 826mm (32.5) in length.
Rear fixed position 1080P HD camera and two 1500 Lumen lights.
The large foot print, stable float block design and dual cameras allow users to attach up to three ROV accessories simultaneously.

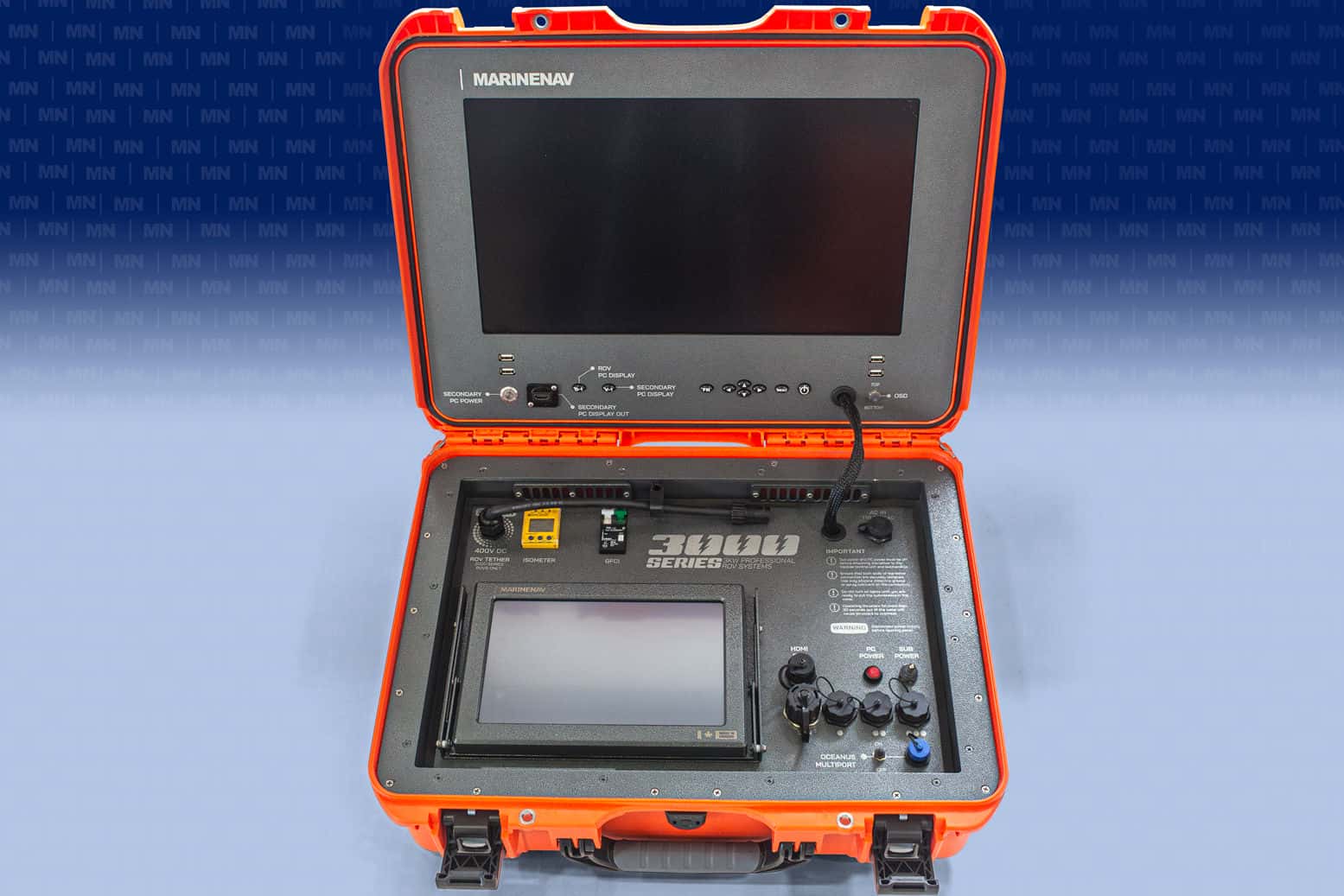

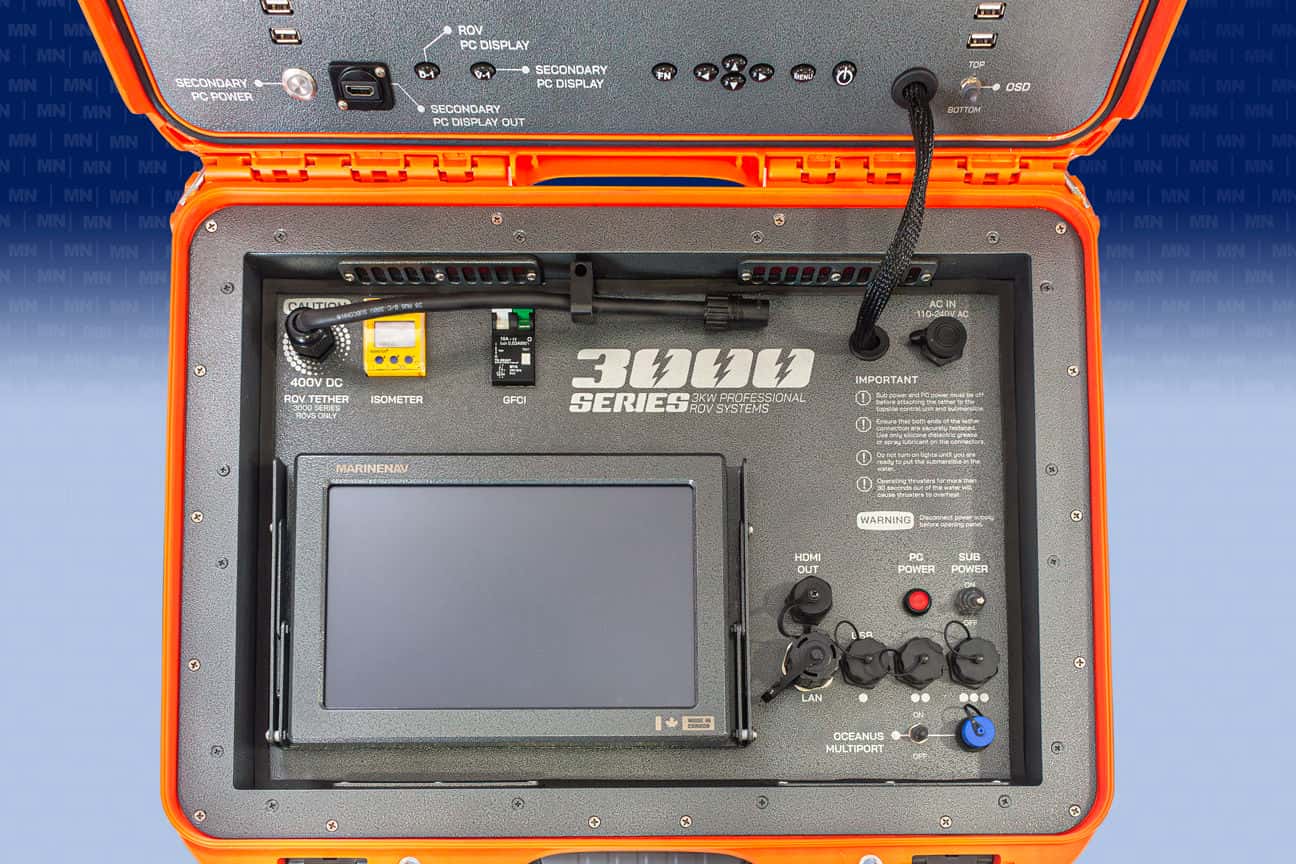

The 3000 series 3Kw professional topside delivers twice as much power to thrusters than our Oceanus Mini/Pro topside
The 3000 Series topside features dual built-in industrial computers
The Oceanus Ultimate ROV system includes a 3000 Series topside featuring dual built-in computers.

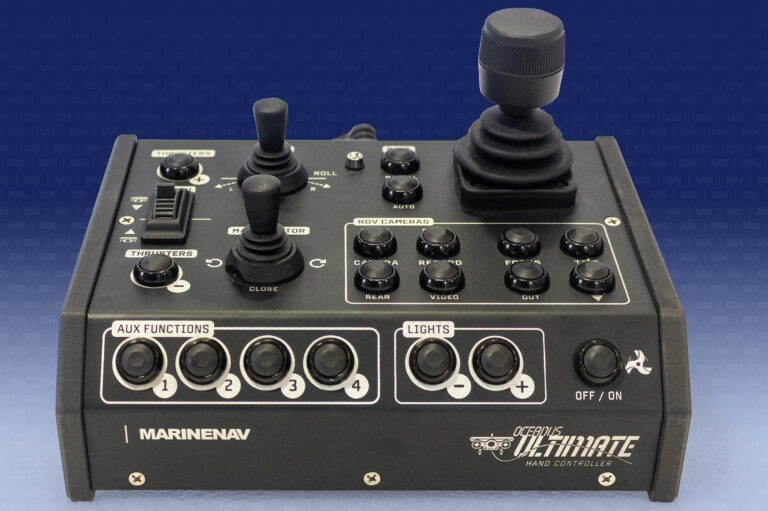

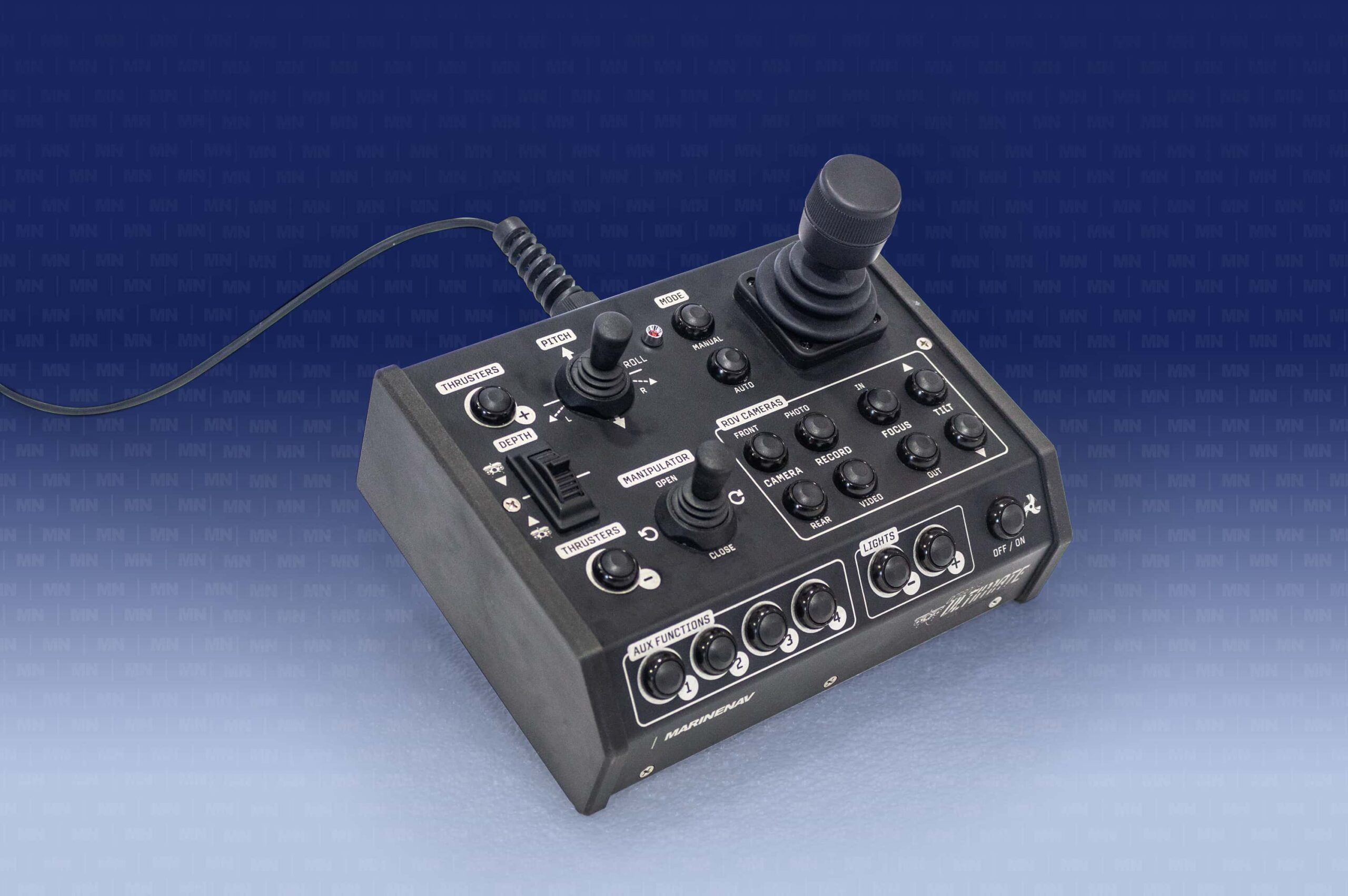

Oceanus joystick/ hand-held controller with 19 ROV command buttons, two micro joysticks and a thumbwheel depth controller.
starting at
- Oceanus Ultimate ROV
- 3000 Series topside ROV control case
- Dual built-in PCs (topside case)
- Proprietary ROV Flight Control System software
- Oceanus joystick/hand-held controller (v4.0)
- A multi-function wireless keyboard
- 44-ballast weight bolts and nuts
- AC power cable and IP65 HDMI cable
- Spare fasteners kit

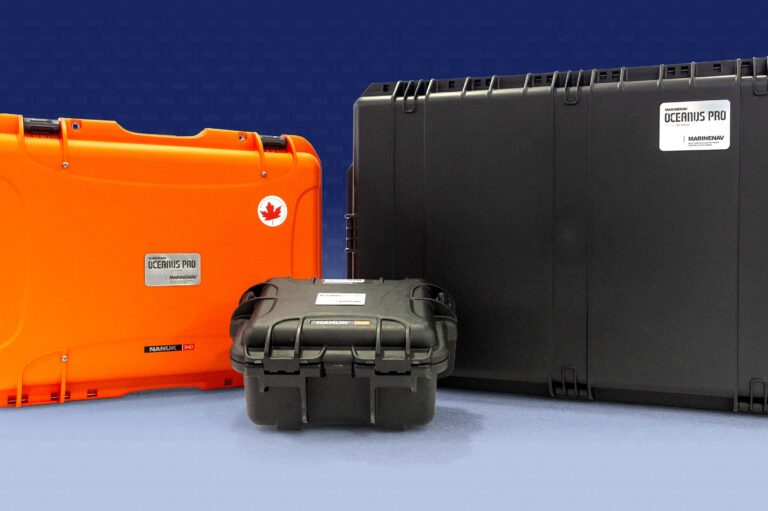

- IP-rated rugged hard-shell transport cases
- Operator manual and support documentation
- Falcon UAV 3-year limited warranty*
Distinctive eight-vectorized thruster design and built-in ROV pitch and roll functionality provide ultimate maneuverability when needed most. Dual full HD 1080P video cameras and adaptive ROV controls that correspond to the ROV camera view make piloting the ROV a breeze.
Falcon’s Oceanus Ultimate ROV system includes these features
International sales and support are provided by an extensive network of authorized distributors.
Portable, mission-ready ROVs that can be set up and deployed within minutes by a single person.
ROV chassis is manufactured from anodized metal. Independently certified.

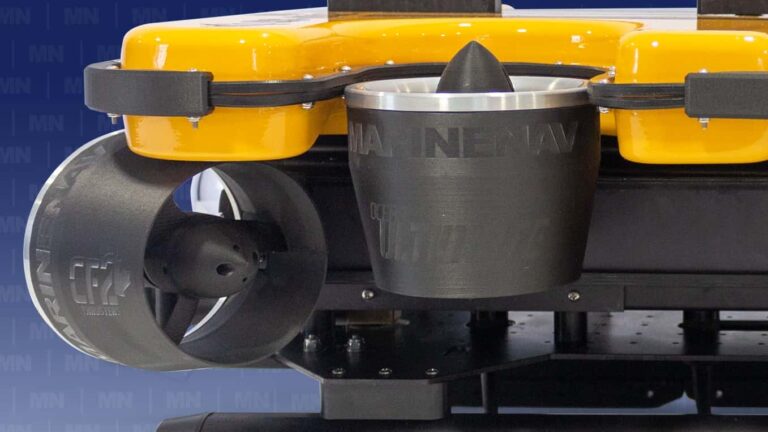

Vectorized carbon fibre thruster design generates power to spare.

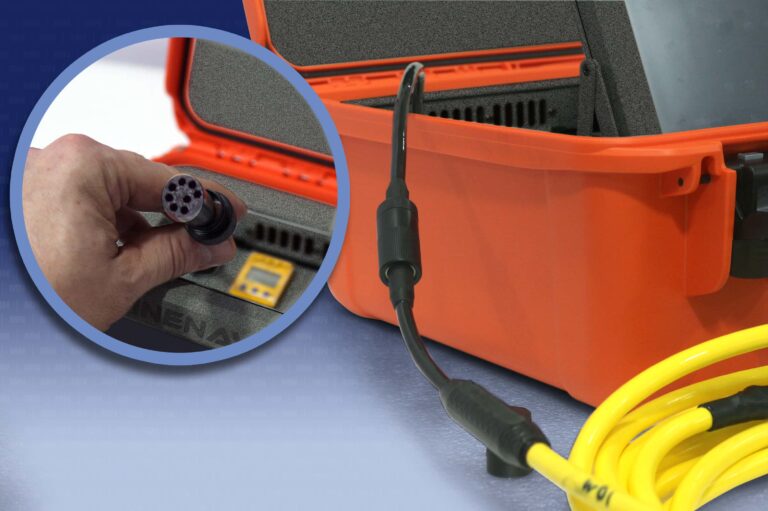

Power over tether design.
A redesigned topside delivers extra power to the ROV thrusters enabling greater ROV payloads.
A secondary topside computer to run third-party ROV accessory software.
Streaming 1080P HD video feed.<br> Full +/- 180° tilt camera gimbal.
Intuitive ROV directional algorithm adjusts to the camera view.
Responsive ROV hand controllers.<br>Rugged topside ROV control hub. Touch-sensitive software.
Increase ROV functionality with MarineNav designed and third-party ROV attachments.
Additional features include
STANDARD DEPTH RATING OF OF 400m (1312 ft).
STANDARD DEPTH RATING OF OF 400m (1312 ft). The Oceanus Ultimate ROV is independently certified to a depth of 400m (1312 ft). An optional system upgrade increases the ROV maximum depth to 500 m (1640 ft).≠
MAXIMUM SPEED UP TO 4 KNOTS
MAXIMUM SPEED UP TO 4 KNOTS Eight high-output thruster engines provide powerful ROV thrust in adverse conditions. Maximum speed test performed with the ROV fitted with an optional performance float block. (ROV ballast weights and accessories were not included when the ROV speed test was conducted).
LARGE PAYLOAD CAPACITY AND LIFTING POWER
The Ultimate ROV is capable of up to 8 kg (17.6 Lb) of ROV lifting power to accommodate multiple ROV accessories or perform retrieval missions.
ROV WEIGHT OF 30.25 kg (66.7 Lb)
ROV WEIGHT OF 30.25 kg (66.7 Lb) (Dry weight does not include the ROV ballast weights, the tether whip, the ROV tether and any ROV accessory).
LATERAL AXIS ROV MOVEMENT
An unparalleled control system and superior thruster performance deliver fully vectorized ROV maneuverability, control ROV depth, horizontal and lateral movement. ROV flight controls include auto-depth, heading hold and ROV stabilize modes.
FULL PITCH AND ROLL FUNCTION CONTROL FUNCTION
Specially designed for use with the Oceanus Ultimate, MarineNav’s Oceanus joystick/hand-held controller (v4.0) controls all directional movements of the ROV, including sustained ROV pitch and roll. ROV flight commands are at your fingertips proving especially useful when navigating the ROV for precise directional sonar sensor readings or positioning manipulator arm attachments at any required angle.

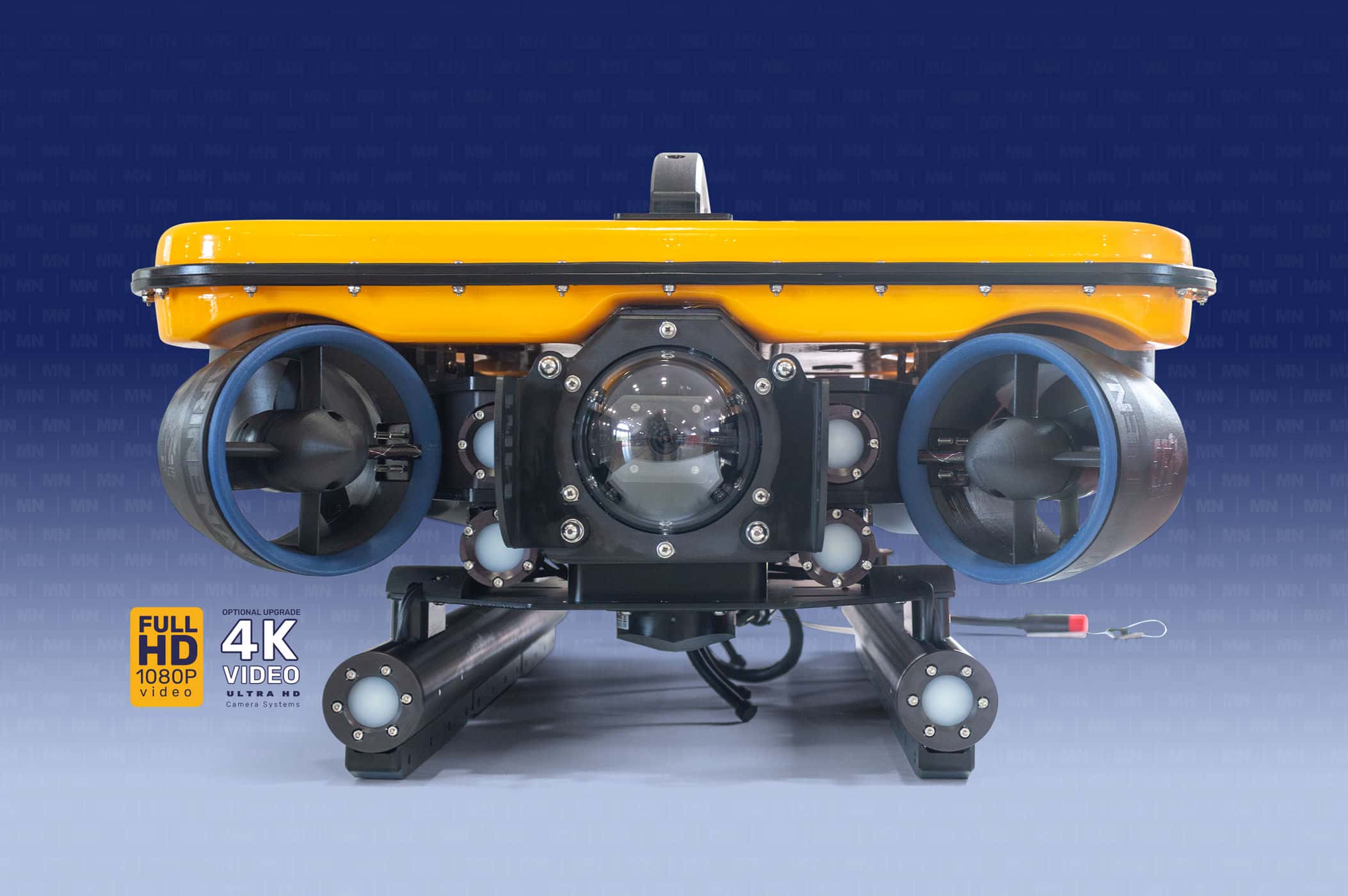

TWO HD 1080P HD CAMERAS
Front and rear-facing 1080P HD camera systems. Toggle control from front to rear view cameras with simple touch commands via the topside Flight Control System software or by button commands through the Oceanus Ultimate joystick/hand-held controller (v4.0). Upgrade your system when you order to front and rear 4K Ultra HD cameras.
FOUR ROV AUX PORTS
Supporting: Ethernet/Spare pair/Manipulator/USB/12V/24V DC flexibility to accessorize with MarineNav manufactured and third-party ROV accessories.
OPTIONAL DVL INTEGRATION UPGRADE
Allows position hold and semi-autonomous use.
8 TOTAL LIGHTS INCLUDING 6 X 1500 LUMEN FRONT LIGHTS
The Oceanus Ultimate features six front-facing 1500 Lumen lights and two rear-facing 1500 Lumen lights. Control the brightness of all lights via the topside Flight Control System software or with button commands through the Oceanus Ultimate hand-held controller (v4.0).
COMPREHENSIVE COVERAGE
COMPREHENSIVE COVERAGE MarineNav’s Peace of Mind Guarantee and 3-year limited warranty provide extended coverage on your purchase.*

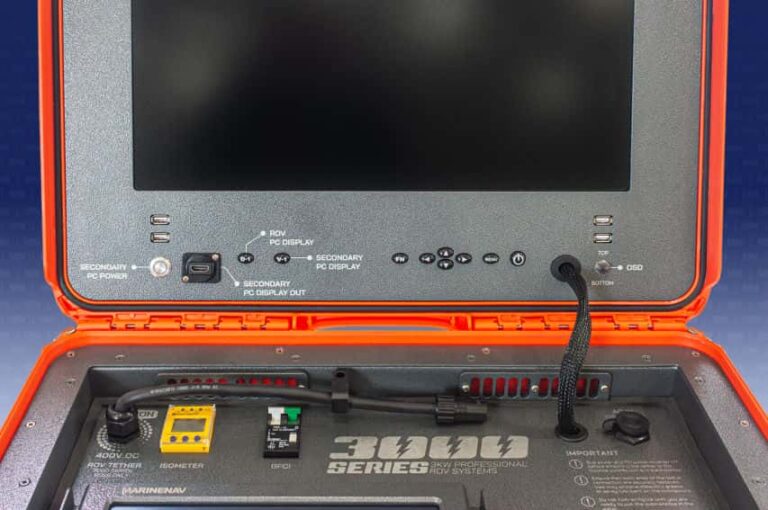

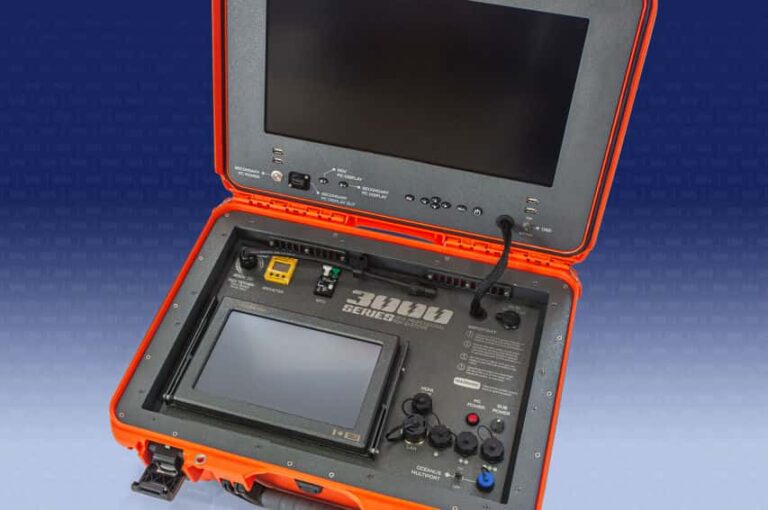

PORTABLE IP-RATED TOPSIDE ROV CONTROL CASE
With an exterior measurement of 508mm/20.0" (L) x 355.6mm/14.0" (W) x 203.2mm/8.0" (H) and weighing 20.65 kg (45.5 Lb) the IP-rated topside case functions as the operational hub of the Oceanus Mini Lite ROV system.
WIDE-SCREEN VIDEO DISPLAY
WIDE-SCREEN VIDEO DISPLAY 18.5" TFT active matrix panel, 1600 nits brightness (full daylight readable), 1024 x 786 resolution.
PRIMARY COMPUTER WITH 2TB SOLID-STATE DRIVE TOPSIDE
The topside ROV control case features a primary i7 industrial computer and a large built-in 2TB SSD which stores hours of content.
SECONDARY TOPSIDE COMPUTER WITH 256 GB SSD STORAGE
Built-in secondary computer with Elk Lake CPU, 8 GB RAM, Windows 11 operating system and 256GB SSD.
TOUCH-SENSITIVE USER INTERFACE
TOUCH-SENSITIVE USER INTERFACE Our proprietary Flight Control System software user interface is a touch-sensitive array of command modules that display all essential ROV functions on a secondary 10.1-inch TFT touch active matrix panel (1000 nits brightness, full daylight readable, 1280 x 800 resolution).
ADAPTIVE ROV FLIGHT COMMANDS TO CAMERA VIEW
Toggle control from front to rear view camera with a simple touch command via the topside Flight Control System software. FCS software automatically adapts ROV joystick flight commands to the selected camera view—no need to relearn joystick commands when flying in reverse.
ON-SCREEN DISPLAY (OSD)
ON-SCREEN DISPLAY (OSD) Real-time data includes recording time, voltage, water temperature, depth, and date/time stamp. Heading and attitude are overlaid or embedded with video. Custom user input lines are available. When paired with an accessory, GPS coordinates are displayed as an overlay option, with an enabled data entry field. The addition of a customized logo is available as an optional upgrade.
OCEANUS MULTIPORT
OCEANUS MULTIPORT Our Oceanus Multiport communication system allows rapid integration of third-party accessories, software and external processors.
HDMI VIDEO OUTPUT
Share streaming data captured by the ROV onboard camera to an external HD monitor by conveniently connecting via the topside HDMI video out port.
WIRELESS BROADCASTING FEATURE
ROV pilot can share streaming video to multiple parties with access to web-enabled devices via a simple built-in interface.
OPTIONAL MARINENAV FLEET MANAGEMENT SUITE
Monitor the status and health of the ROV remotely for complete asset management of one or multiple systems.
Δ With an optional integrated DVL, Altimeter data and speed over ground can be measured and the position hold feature can be enabled. Future software updates will enable Semi-autonomous control.
increase productivity with rOV accessories

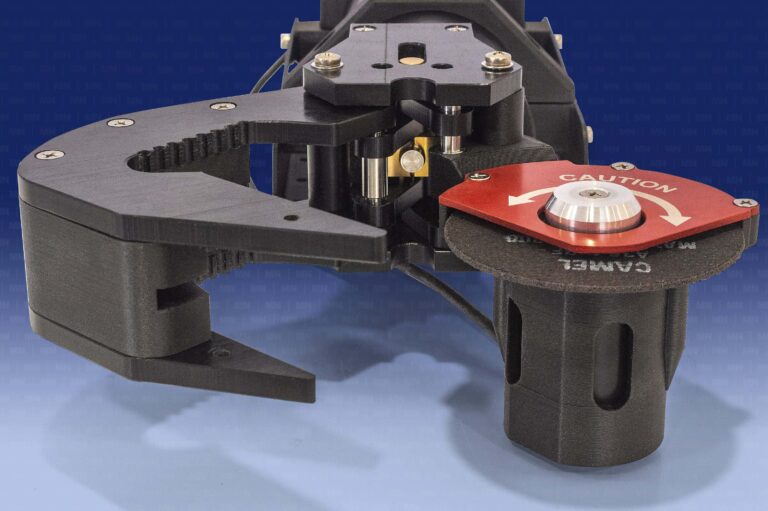

Falcon designs and manufactures a range of ROV accessories that include manipulator arms, cutting tools, ROV hull crawlers, and external camera systems and custom mounting brackets. We can design and manufacture bespoke accessories for your individual needs. Contact Falcon for a list of ROV accessories you can use with your Oceanus Ultimate ROV system.
Terms and conditions
* The three-year limited warranty extension is available when an eligible Falcon UAV Oceanus ROV system is registered within the first year of purchase. For the warranty to remain valid, all scheduled ROV maintenance must be completed as outlined by the manufacturer’s guidelines. At the end of the regular two-year limited warranty period, a third-year extension is provided to customers who adhere to all regimented ROV maintenance. Limited warranty restrictions apply;
a) Falcon UAV Ltd warrants that tether supplied with ROV systems or supplied separately will be free from defects in materials and workmanship under normal use and service for a period of ninety (90) days from the date of shipment.
b) Falcon UAV Ltd warrants that tether whips that were provided as part of an ROV system at time of original shipment will be free from defects in materials and workmanship under normal use and service for a period of six (6) months from date of shipment.
c) Falcon UAV Ltd warrants that thruster motors that were provided as part of an ROV system at the time of original shipment will be free from defects in materials and workmanship under normal use and service for a period of one (1) year from the date of shipment. This does not include wearable parts such as propellers, which are considered a consumable item. Tampering, misuse and regular wear are not covered by warranties.
d) Falcon UAV Ltd warrants that the ROV float block as part of an ROV system at the time of original shipment will be free from defects in materials and workmanship under normal use and service for a period of three (3) months. The three-month warranty does not cover normal wear such as scuffs, scrapes indentations, or other damage to the float block caused by external environmental factors.
e) Falcon UAV Ltd warranties exclude corrosion that may occur on ROV metallic parts caused in part by improper cleaning and storage of ROV after each mission. Refer to your owner’s manual for proper cleaning and maintenance of your ROV system.
× While we strive to ensure the accuracy of all items and descriptions in this document, this is not always possible. Specifications, options, pricing and availability are subject to change without notice. Errors and omissions excepted. We reserve the right to limit quantities.
